QA1PART NUMBER: 122-AMR7-8

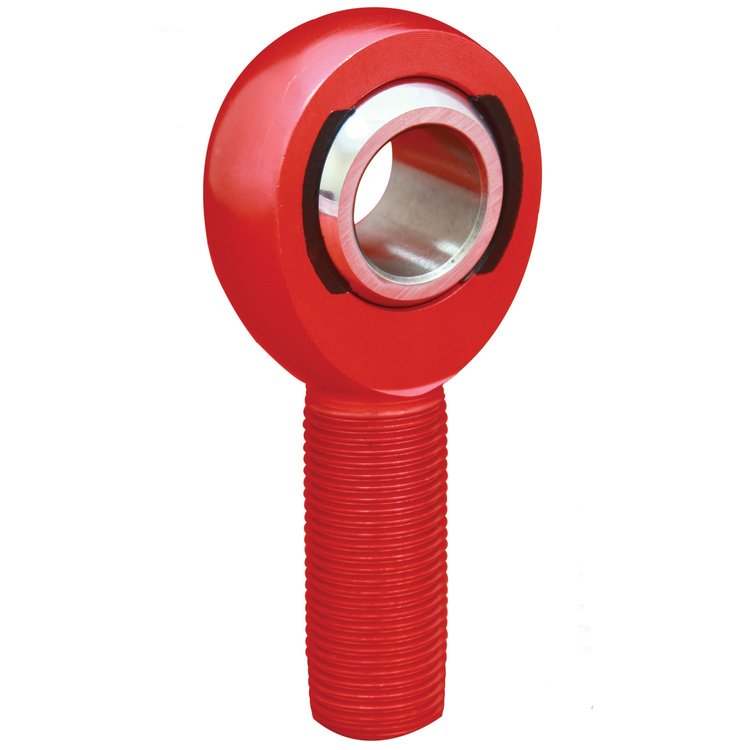

AM Aluminum Series Rod End Hole I.D.: .4375"

Name: AM Aluminum Series Rod End Hole I.D.: .4375"
Brand: QA1
SKU: 122-AMR7-8
Price: 21.98 USD
Availability: InStock

^$21⁹⁸

Ships on 09/08/2026

Lowest Price Guarantee

AM Aluminum Series Rod End

Right Hand Thread

Part TypeRod End

BrandQA1

Package Height0.6

Package Width2.6

Package Length3.2

Weight0.1 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishRed anodized

Thread Length1.5 in (38.1 mm)

Rod End Head Bore Size0.438 in (11.1 mm)

Rod End Thread Size (In.)7/16-20 RH

QuantitySold individually

Rod End Centerline Length2.438 in (61.9 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)12 degrees

Rod End Head Diameter1.312 in (33.3 mm)

Rod End Ball Width0.562 in (14.3 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.562 in (14.3 mm)

Rod End Static Load Capacity (Lbs.)11,100

Rod End MaterialAluminum

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberAMR7-8

Package Qty1

Package TypeEA
