Vehicle Info NeededQA1PART NUMBER: 122-AMR8

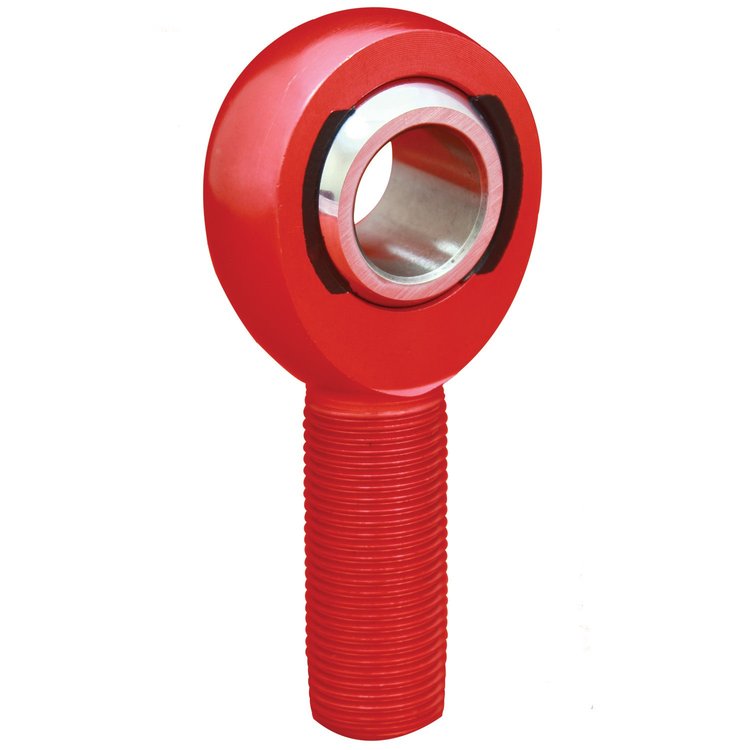

AM Aluminum Series Rod End Hole I.D.: .5000"
$1499
Ships on 09/09/2026
Lowest Price GuaranteeAM Aluminum Series Rod EndRight Hand Thread
- AM Aluminum Series Rod End
- Hole I.D.: .5000"
- RH Thread: 1/2"-20
ROD END (A) ENDURA ALUM , M-R 1/2-1/2 RED
Part TypeRod End
BrandQA1
Package Height0.5
Package Width1.25
Package Length3.0
Weight0.14 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishRed anodized
Thread Length1.5 in (38.1 mm)
Rod End Head Bore Size0.5 in (12.7 mm)
Gasket Or Seal IncludedNo
Rod End Thread Size (In.)1/2-20 RH
QuantitySold Individually
Rod End Centerline Length2.438 in (61.9 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)12 degrees
Rod End Head Diameter1.312 in (33.3 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.625 in (15.9 mm)
Rod End Static Load Capacity (Lbs.)7,700
Rod End MaterialAluminum
Inside Diameter0.500 in
Race IncludedYes
Rod End StylePTFE/KEVLAR« lined
Part FitmentUniversal
Outside Diameter1.312 in
Vendor Part NumberAMR8
Package Qty1
Package TypeEA
