QA1PART NUMBER: 122-CFL10

CF Series Rod End Hole I.D.: 5/8"

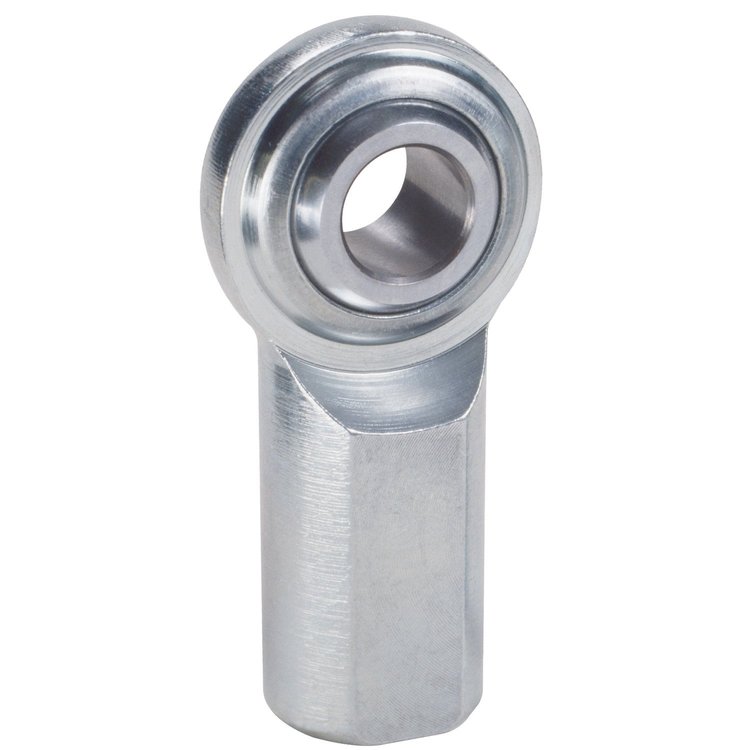

Name: CF Series Rod End Hole I.D.: 5/8"
Brand: QA1
SKU: 122-CFL10
Price: 12.09 USD
Availability: InStock

^$12⁰⁹

10 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

CF Series Rod Ends

Left Hand

Part TypeRod End

BrandQA1

Package Height0.7

Package Width2.7

Package Length4.4

Weight0.3 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishZinc plated

Thread Length1.375 in (34.9 mm)

Rod End Head Bore Size0.625 in (15.9 mm)

Rod End Thread Size (In.)5/8-18 LH

QuantitySold individually

Rod End Centerline Length2.5 in (63.5 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)26 degrees

Rod End Head Diameter1.5 in (38.1 mm)

Rod End Ball Width0.75 in (19.1 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.75 in (19.1 mm)

Rod End Static Load Capacity (Lbs.)11,385

Rod End MaterialCarbon steel

Rod End StyleMetal to metal

Part FitmentUniversal

Vendor Part NumberCFL10

Package Qty1

Package TypeEA
