Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

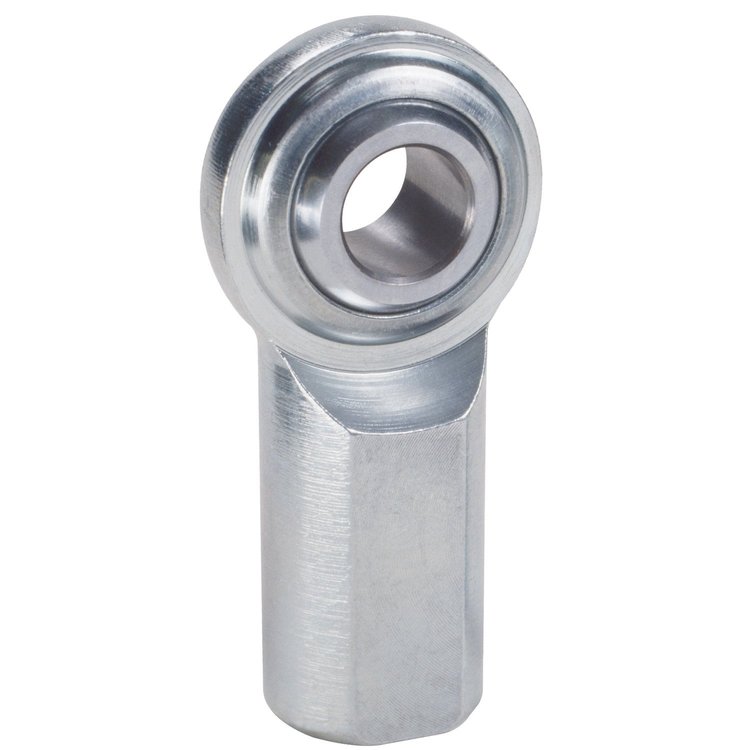

CFT Series Rod EndsLeft Hand PTFE Lined
- CF Series Rod End - PTFE Lined
- Hole I.D.: 3/4"
- Thread Size: 3/4"-16 LH
- Misalign Angle: 24°
- Static Load: 13,668 lbs.
CF Female Series Rod Ends
For a traditional carbon steel two-piece rod end, QA1 offers this CF Carbon Steel Series rod ends. These metal to metal rod ends are built for strength and are protective coated for corrosion resistance. They are available with left and right hand threads to make your project run turn out correctly.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Show More
Body
- Carbon Steel
- Protective Coated for Corrosion Resistance
- PTFE® Lined ("T")
QA1 Endura C-Series Carbon Steel Road Ends are also available with MaleThreads
Part TypeRod End
Product LineQA1 CF Series Rod Ends
BrandQA1
Package Height0.87
Package Width1.75
Package Length3.75
Weight0.63 PG
Part CategoryPerformance Parts
Rod End AttachmentFemale Threads
Rod End FinishZinc plated
Thread Length1.562 in (39.7 mm)
Rod End Head Bore Size0.75 in (19.1 mm)
Rod End Thread Size (In.)3/4-16 LH
QuantitySold individually
Rod End Centerline Length2.875 in (73 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)24 degrees
Rod End Head Diameter1.75 in (44.5 mm)
Rod End Ball Width0.875 in (22.2 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.875 in (22.2 mm)
Rod End Static Load Capacity (Lbs.)15,894
Rod End MaterialCarbon steel
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberCFL12T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
