Vehicle Info Needed

QA1PART NUMBER: 122-CFL3

CF Series Rod End Hole I.D.: .1900"

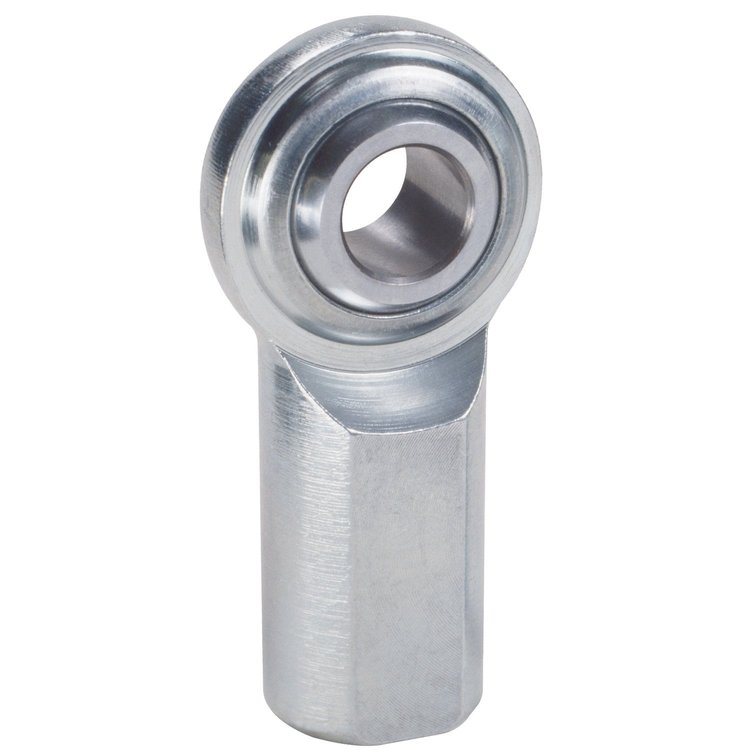

Name: CF Series Rod End Hole I.D.: .1900"
Brand: QA1
SKU: 122-CFL3
Price: 3.99 USD
Availability: InStock

^$3⁹⁹

8 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

CF Series Rod Ends

Left Hand

Part TypeRod End

BrandQA1

Package Height2.7

Package Width2.7

Package Length3.3

Weight0.04 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishZinc plated

Rod End Thread Size10-32 LH NF

Thread Length0.5 in (12.7 mm)

Rod End Head Bore Size0.19 in (4.8 mm)

QuantitySold individually

Rod End Centerline Length1.062 in (27 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)20 degrees

Rod End Head Diameter0.625 in (15.9 mm)

Rod End Ball Width0.312 in (7.9 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.312 in (7.9 mm)

Rod End Static Load Capacity (Lbs.)2,079

Rod End MaterialCarbon steel

Rod End StyleMetal to metal

Part FitmentUniversal

Vendor Part NumberCFL3

Package Qty1

Package TypeEA

No Questions

No Reviews
