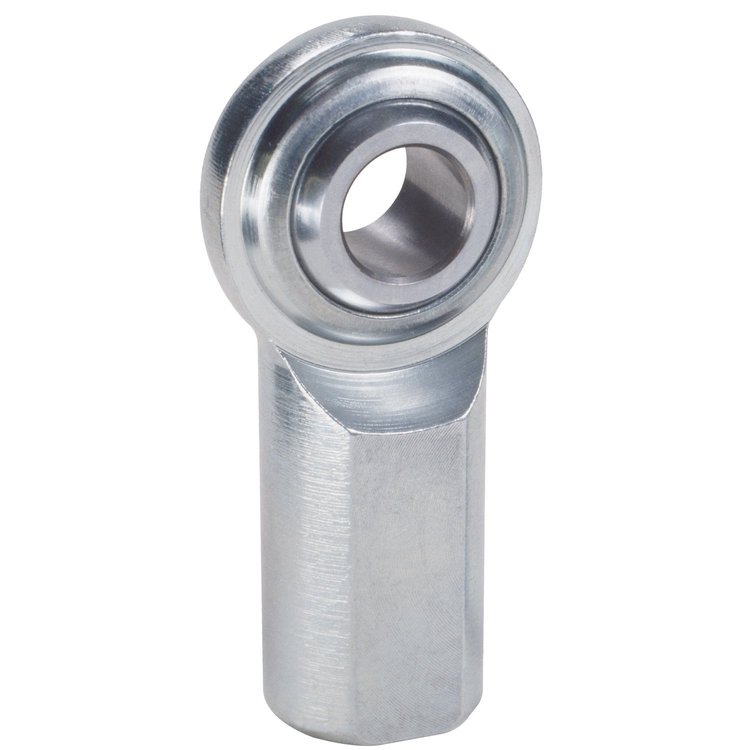

CF Series Rod End - PTFE Lined Hole I.D.: 5/16"

Name: CF Series Rod End - PTFE Lined Hole I.D.: 5/16"
Brand: QA1
SKU: 122-CFL5T
Price: 9.89 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

CFT Series Rod Ends
Left Hand

PTFE Lined

Part TypeRod End

BrandQA1

Package Height0.43

Package Width0.87

Package Length1.81

Weight0.08 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishZinc plated

Thread Length0.687 in (17.4 mm)

Rod End Head Bore Size0.313 in (8 mm)

Rod End Thread Size (In.)5/16-24 LH

QuantitySold individually

Rod End Centerline Length1.375 in (34.9 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)22 degrees

Rod End Head Diameter0.875 in (22.2 mm)

Rod End Ball Width0.437 in (11.1 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.437 in (11.1 mm)

Rod End Static Load Capacity (Lbs.)5,110

Rod End MaterialCarbon steel

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberCFL5T

Package Qty1

Package TypeEA
