Vehicle Info NeededQA1PART NUMBER: 122-CFL8

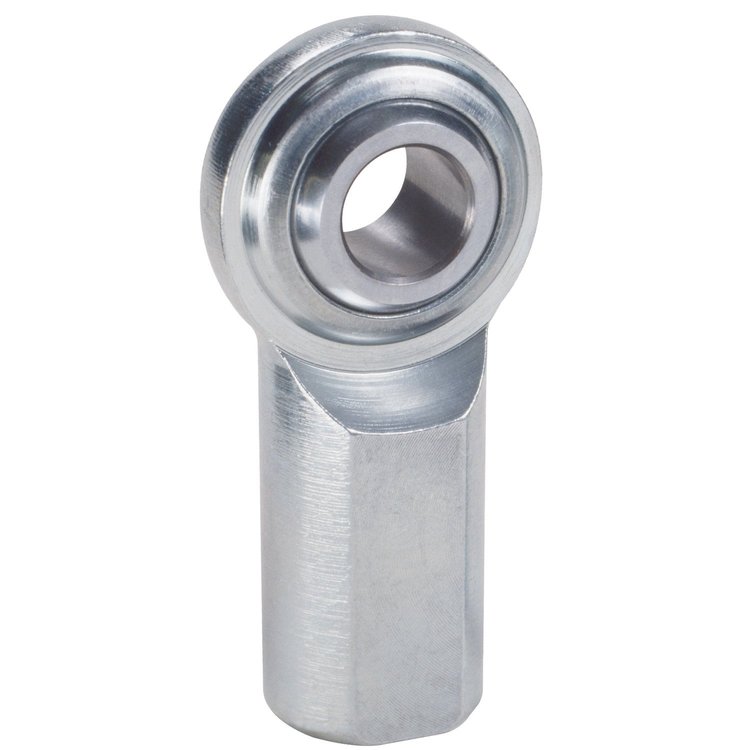

CF Series Rod End Hole I.D.: 1/2"
$699
7 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeCF Series Rod EndsLeft Hand
- CF Series Rod End
- Hole I.D.: 1/2"
- Thread Size: 1/2"-20 LH
- Misalign Angle: 20°
- Static Load: 10,046 lbs.
Part TypeRod End
BrandQA1
Package Height1.1
Package Width4.7
Package Length11.6
Weight0.29 PG
Part CategoryPerformance Parts
Rod End AttachmentFemale Threads
Rod End FinishZinc plated
Thread Length1.062 in (27 mm)
Rod End Head Bore Size0.5 in (12.7 mm)
Rod End Thread Size (In.)1/2-20 LH
QuantitySold individually
Rod End Centerline Length2.125 in (54 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)20 degrees
Rod End Head Diameter1.312 in (33.3 mm)
Rod End Ball Width0.625 in (15.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.625 in (15.9 mm)
Rod End Static Load Capacity (Lbs.)10,046
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberCFL8
Package Qty1
Package TypeEA
