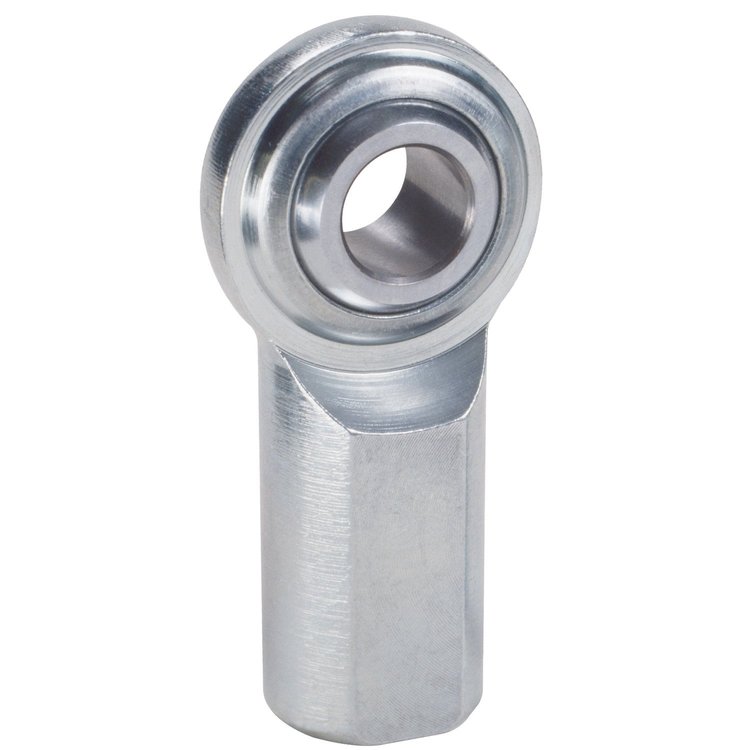

CF Series Rod End - PTFE Lined Hole I.D.: 1/2"

Name: CF Series Rod End - PTFE Lined Hole I.D.: 1/2"
Brand: QA1
SKU: 122-CFL8T
Price: 14.29 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

CFT Series Rod Ends
Left Hand

PTFE Lined

Part TypeRod End

BrandQA1

Package Height1.0

Package Width2.0

Package Length4.0

Weight0.3 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishZinc plated

Thread Length1.062 in (27 mm)

Rod End Head Bore Size0.5 in (12.7 mm)

Rod End Thread Size (In.)1/2-20 LH

QuantitySold individually

Rod End Centerline Length2.125 in (54 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)20 degrees

Rod End Head Diameter1.312 in (33.3 mm)

Rod End Ball Width0.625 in (15.9 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.625 in (15.9 mm)

Rod End Static Load Capacity (Lbs.)10,046

Rod End MaterialCarbon steel

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberCFL8T

Package Qty1

Package TypeEA
