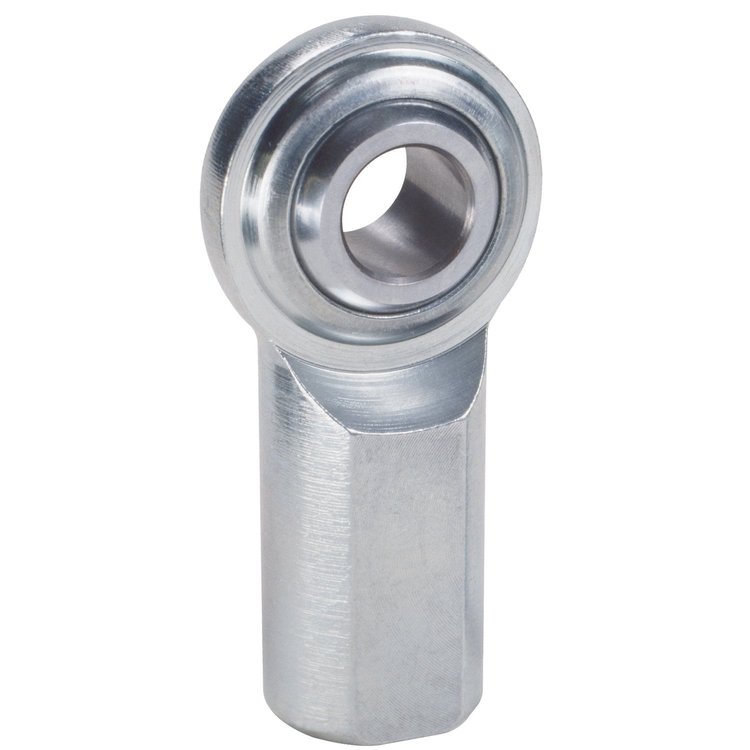

CF Series Rod End Hole I.D.: 5/8"

Name: CF Series Rod End Hole I.D.: 5/8"
Brand: QA1
SKU: 122-CFR10T
Price: 18.70 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

CF Series Rod Ends
Right Hand

PTFE Lined

Part TypeRod End

BrandQA1

Package Height2.7

Package Width2.9

Package Length5.7

Weight0.55 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishZinc plated

Thread Length1.375 in (34.9 mm)

Rod End Head Bore Size0.625 in (15.9 mm)

Rod End Thread Size (In.)5/8-18 RH

QuantitySold individually

Rod End Centerline Length2.5 in (63.5 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)26 degrees

Rod End Head Diameter1.5 in (38.1 mm)

Rod End Ball Width0.75 in (19.1 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.75 in (19.1 mm)

Rod End Static Load Capacity (Lbs.)11,385

Rod End MaterialCarbon steel

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberCFR10T

Package Qty1

Package TypeEA
