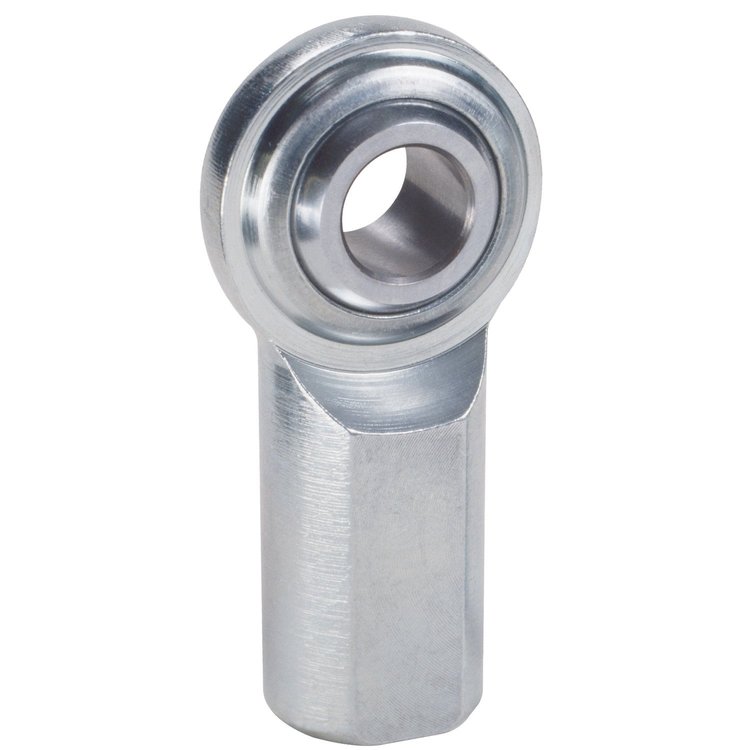

CF Series Rod End Hole I.D.: 3/4"

Name: CF Series Rod End Hole I.D.: 3/4"
Brand: QA1
SKU: 122-CFR12
Price: 11.99 USD
Availability: InStock

^$11⁹⁹

More than 10 available

Ships on Sep 08, 2026

Lowest Price Guarantee

CF Series Rod Ends
Right Hand

CF Series Rod End
Hole I.D.: 3/4"
Thread Size: 3/4"-16 RH

Misalign Angle: 24°
Static Load: 15,894 lbs.

CF Female Series Rod Ends
For a traditional carbon steel two-piece rod end, QA1 offers this CF Carbon Steel Series rod ends. These metal to metal rod ends are built for strength and are protective coated for corrosion resistance. They are available with left and right hand threads to make your project run turn out correctly.
Ball
52100 Bearing Steel
Heat Treated
Hard Chrome Plated
Precision Ground
Show More
Body
Carbon Steel
Protective Coated for Corrosion Resistance
PTFE® Lined ("T")

QA1 Endura C-Series Carbon Steel Road Ends are also available with MaleThreads

Part TypeRod End
Product LineQA1 CF Series Rod Ends
BrandQA1
Package Height3.4
Package Width4.4
Package Length4.8
Weight0.65 PG
Part CategoryPerformance Parts
Rod End AttachmentFemale Threads
Rod End FinishZinc plated
Thread Length1.562 in (39.7 mm)
Rod End Head Bore Size0.75 in (19.1 mm)
Rod End Thread Size (In.)3/4-16 RH
QuantitySold individually
Rod End Centerline Length2.875 in (73 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)24 degrees
Rod End Head Diameter1.75 in (44.5 mm)
Rod End Ball Width0.875 in (22.2 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.875 in (22.2 mm)
Rod End Static Load Capacity (Lbs.)15,894
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberCFR12
Package Qty1
Package TypeEA
