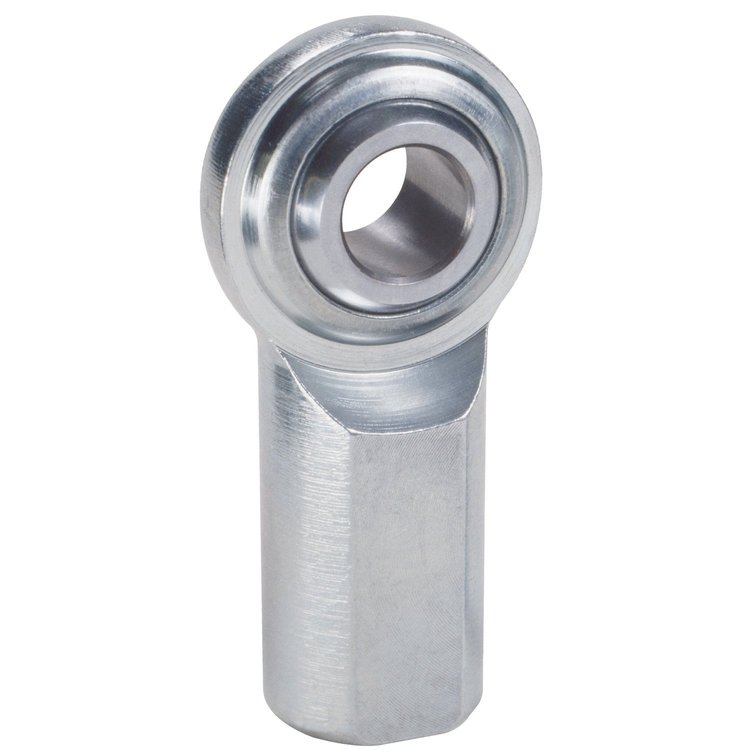

CF Series Rod End Hole I.D.: 1/8"

Name: CF Series Rod End Hole I.D.: 1/8"
Brand: QA1
SKU: 122-CFR2
Price: 7.70 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

CF Series Rod Ends

Right Hand

Part TypeRod End

BrandQA1

Package Height0.25

Package Width0.5

Package Length1.05

Weight0.02 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishZinc plated

Thread Length0.437 in (11.1 mm)

Rod End Head Bore Size0.125 in (3.2 mm)

Rod End Thread Size (In.)6-32 RH UNC

QuantitySold individually

Rod End Centerline Length0.812 in (20.6 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)22 degrees

Rod End Head Diameter0.5 in (12.7 mm)

Rod End Ball Width0.25 in (6.4 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.25 in (6.4 mm)

Rod End Static Load Capacity (Lbs.)1,510

Rod End MaterialCarbon steel

Rod End StyleMetal to metal

Part FitmentUniversal

Vendor Part NumberCFR2

Package Qty1

Package TypeEA
