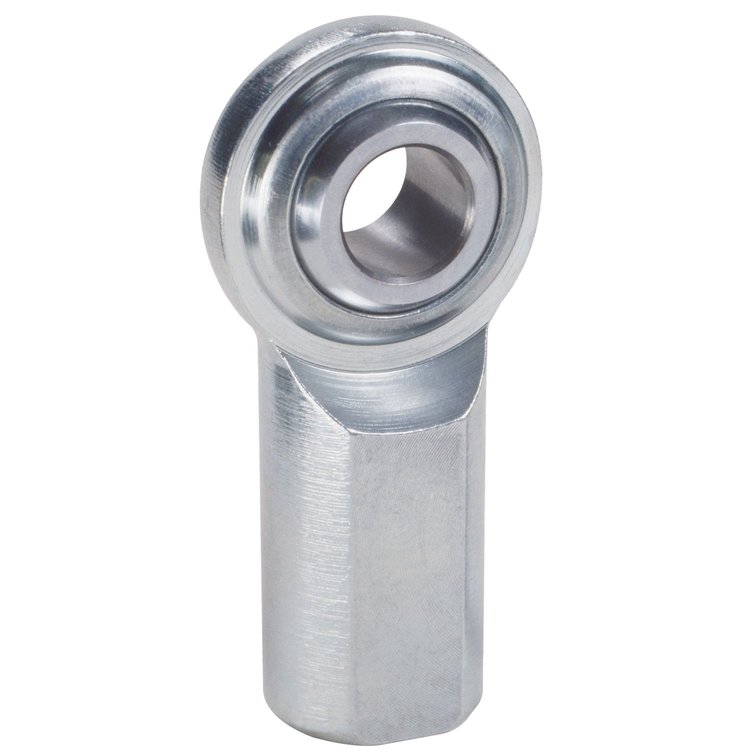

Vehicle Info NeededQA1PART NUMBER: 122-CFR3-4
CF Series Rod End Hole I.D.: .1900"
$399
Ships on Sep 03, 2026
Lowest Price GuaranteeCF Series Rod EndsRight Hand
- CF Series Rod End
- Hole I.D.: .1900"
- Thread Size: 1/4"-28 RH
- Misalign Angle: 20°
- Static Load: 4,197 lbs.
CF Female Series Rod Ends
For a traditional carbon steel two-piece rod end, QA1 offers this CF Carbon Steel Series rod ends. These metal to metal rod ends are built for strength and are protective coated for corrosion resistance. They are available with left and right hand threads to make your project run turn out correctly.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Ground
Show More
Body
- Carbon Steel
- Protective Coated for Corrosion Resistance
- PTFE® Lined ("T")
QA1 Endura C-Series Carbon Steel Road Ends are also available with MaleThreads
Part TypeRod End
Product LineQA1 CF Series Rod Ends
BrandQA1
Package Height0.5
Package Width0.7
Package Length1.6
Weight0.05 PG
Part CategoryPerformance Parts
Rod End AttachmentFemale Threads
Rod End FinishZinc plated
Thread Length0.687 in (17.4 mm)
Rod End Head Bore Size0.19 in (4.8 mm)
Rod End Thread Size (In.)1/4-28 RH
QuantitySold individually
Rod End Centerline Length1.312 in (33.3 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)20 degrees
Rod End Head Diameter0.75 in (19.1 mm)
Rod End Ball Width0.312 in (7.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.312 in (7.9 mm)
Rod End Static Load Capacity (Lbs.)4,197
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberCFR3-4
Package Qty1
Package TypeEA
