Vehicle Info NeededQA1PART NUMBER: 122-CFR3

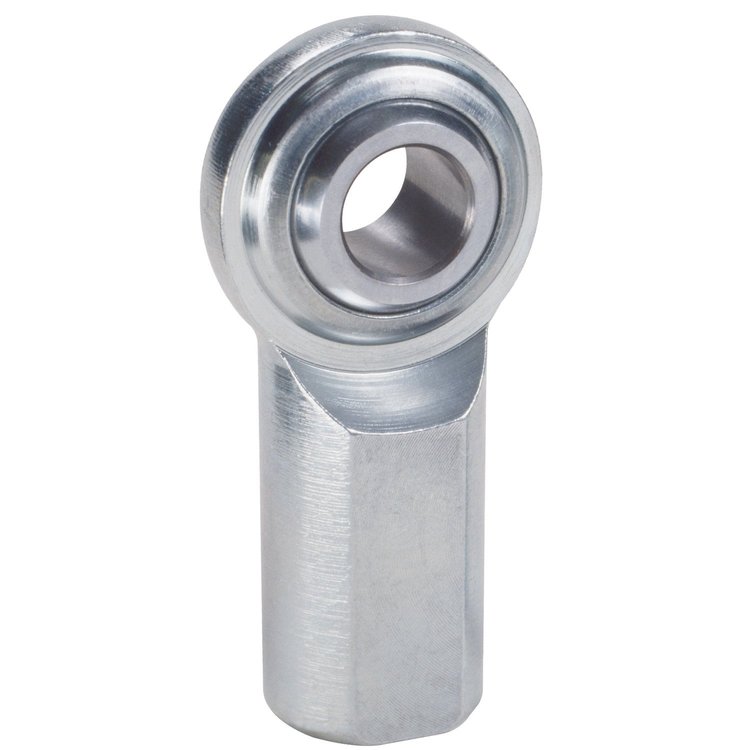

CF Series Rod End Hole I.D.: .1900"
$399
More than 10 available
Ships on Sep 08, 2026
Lowest Price Guarantee
CF Series Rod EndsRight Hand
- CF Series Rod End
- Hole I.D.: .1900"
- Thread Size: 10-32 RH
- Misalign Angle: 20°
- Static Load: 2,079 lbs.
Part TypeRod End
BrandQA1
Package Height1.0
Package Width2.9
Package Length4.8
Weight0.03 PG
Part CategoryPerformance Parts
Rod End AttachmentFemale Threads
Rod End FinishZinc plated
Rod End Thread Size10-32 RH NF
Thread Length0.5 in (12.7 mm)
Rod End Head Bore Size0.19 in (4.8 mm)
QuantitySold individually
Rod End Centerline Length1.062 in (27 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)20 degrees
Rod End Head Diameter0.625 in (15.9 mm)
Rod End Ball Width0.312 in (7.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.312 in (7.9 mm)
Rod End Static Load Capacity (Lbs.)2,079
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberCFR3
Package Qty1
Package TypeEA
