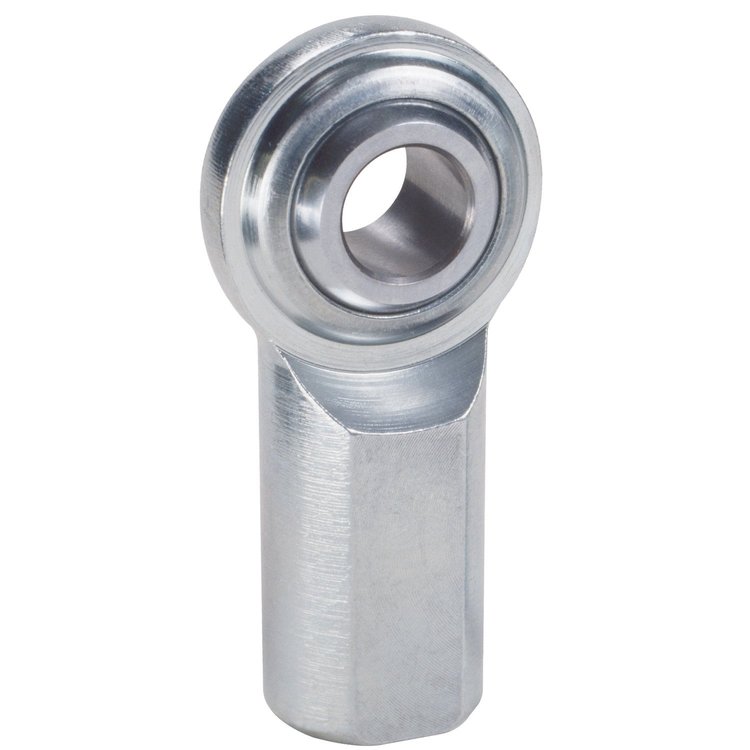

CF Series Rod End Hole I.D.: 1/4"

Name: CF Series Rod End Hole I.D.: 1/4"
Brand: QA1
SKU: 122-CFR4T
Price: 10.98 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

CF Series Rod Ends
Right Hand

PTFE Lined

Part TypeRod End

BrandQA1

Package Height0.37

Package Width0.75

Package Length1.68

Weight0.06 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishZinc plated

Thread Length0.687 in (17.4 mm)

Rod End Head Bore Size0.25 in (6.4 mm)

Rod End Thread Size (In.)1/4-28 RH

QuantitySold individually

Rod End Centerline Length1.312 in (33.3 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)27 degrees

Rod End Head Diameter0.75 in (19.1 mm)

Rod End Ball Width0.375 in (9.5 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.375 in (9.5 mm)

Rod End Static Load Capacity (Lbs.)3,820

Rod End MaterialCarbon steel

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberCFR4T

Package Qty1

Package TypeEA
