QA1PART NUMBER: 122-CFR7

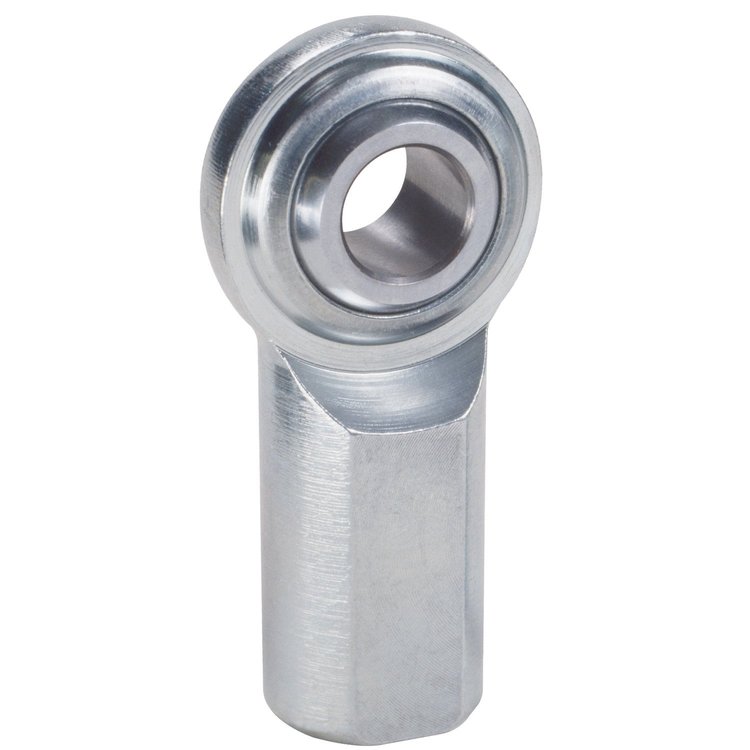

CF Series Rod End Hole I.D.: 7/16"

Name: CF Series Rod End Hole I.D.: 7/16"
Brand: QA1
SKU: 122-CFR7
Price: 5.99 USD
Availability: InStock

^$5⁹⁹

More than 10 available

Ships on Sep 08, 2026

Lowest Price Guarantee

CF Series Rod Ends

Right Hand

Part TypeRod End

BrandQA1

Package Height1.0

Package Width2.0

Package Length3.0

Weight0.15 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishZinc plated

Thread Length0.937 in (23.8 mm)

Rod End Head Bore Size0.438 in (11.1 mm)

Rod End Thread Size (In.)7/16-20 RH

QuantitySold individually

Rod End Centerline Length1.812 in (46 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)21 degrees

Rod End Head Diameter1.125 in (28.6 mm)

Rod End Ball Width0.562 in (14.3 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.562 in (14.3 mm)

Rod End Static Load Capacity (Lbs.)7,897

Rod End MaterialCarbon steel

Rod End StyleMetal to metal

Part FitmentUniversal

Vendor Part NumberCFR7

Package Qty1

Package TypeEA
