Vehicle Info NeededQA1PART NUMBER: 122-CML12T

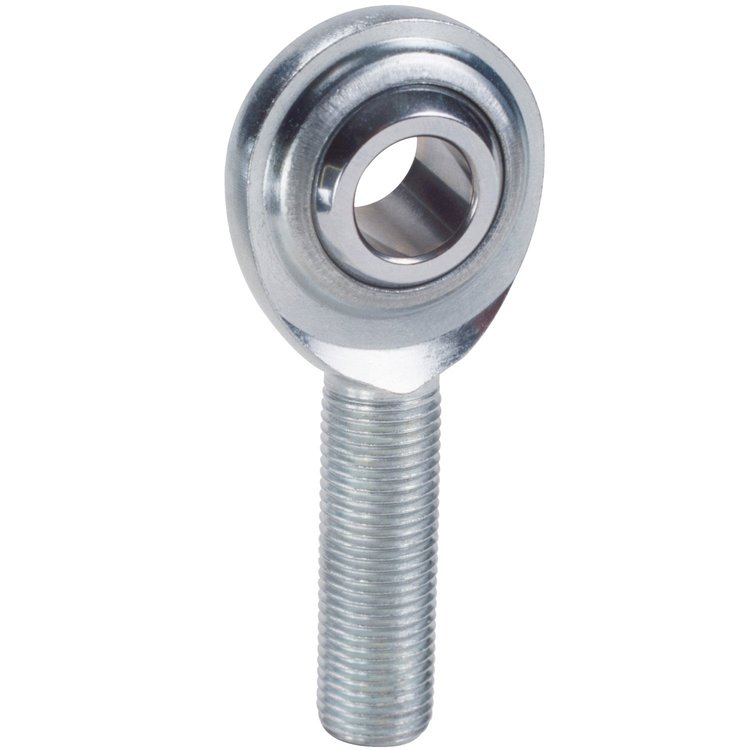

CML12T C Series Rod End, Rod End (C) 2-Pc Carbon M-L 3/4-3/4 PTFE
$2199
3 left in stock
Ships Today
Lowest Price GuaranteeC Series Rod EndRod End (C) 2-Pc Carbon M-L 3/4-3/4 PTFE
QA1 CML12T Features:
For a self-lubricating version of a traditional carbon steel two-piece male rod end, QA1 offers its CM-T Carbon Steel Series rod ends with a PTFE liner. These rod ends are protective coated for corrosion resistance and are available in inch dimensions with left and right hand threads. Stud configurations are available by calling 800-721-7761. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , BODY, Carbon Steel, Protective Coated for Corrosion Resistance, PTFE Lined.
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Part TypeRod End
BrandQA1
Package Height2.0
Package Width3.0
Package Length4.5
Weight0.55 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.562 in (39.7 mm)
Rod End Head Bore Size0.75 in (19.1 mm)
Rod End Thread Size (In.)3/4-16 LH
QuantitySold individually
Rod End Centerline Length2.875 in (73 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)24 degrees
Rod End Head Diameter1.75 in (44.5 mm)
Rod End Ball Width0.875 in (22.2 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.875 in (22.2 mm)
Rod End Static Load Capacity (Lbs.)15,894
Rod End MaterialCarbon steel
Rod End StylePTFE lined
Part FitmentSemi Universal
Vendor Part NumberCML12T
Package Qty1
Package TypeEA
