Vehicle Info NeededQA1PART NUMBER: 122-CML3

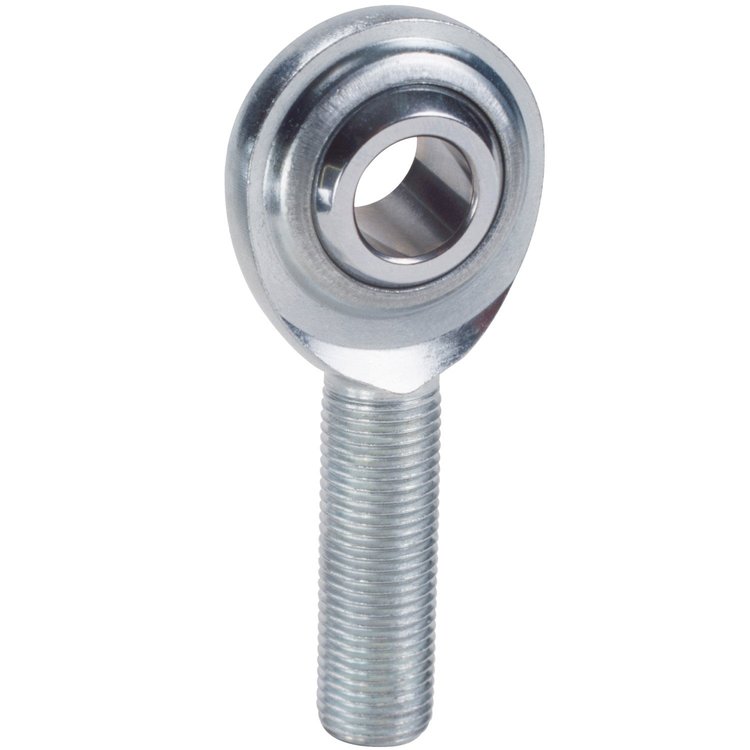

CM Series Rod End Hole I.D.: .1900"
$399
More than 10 available
Ships Today
Lowest Price Guarantee
CM Series Rod EndsLeft Hand
- CM Series Rod End
- Hole I.D.: .1900''
- Thread Size: 10-32 LH
- Misalign Angle: 20°
- Static Load: 1,558 lbs.
Built for Strength and Corrosion Resistance
For a traditional carbon steel two-piece rod end, QA1 offers this CM Carbon Steel Series rod ends. These metal-to-metal rod ends are built for strength and are protective coated for corrosion resistance. They are available with left and right-hand thread to make your project turn out correctly.
Part TypeRod End
Product LineQA1 CM Series Rod Ends
BrandQA1
Package Height0.2
Package Width0.5
Package Length1.5
Weight0.05 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Rod End Thread Size10-32 LH NF
Thread Length0.75 in (19.1 mm)
Rod End Head Bore Size0.19 in (4.8 mm)
QuantitySold individually
Rod End Centerline Length1.25 in (31.8 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)20 degrees
Rod End Head Diameter0.625 in (15.9 mm)
Rod End Ball Width0.312 in (7.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.312 in (7.9 mm)
Rod End Static Load Capacity (Lbs.)1,558
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberCML3
Package Qty1
Package TypeEA
