Vehicle Info NeededQA1PART NUMBER: 122-CML4-5

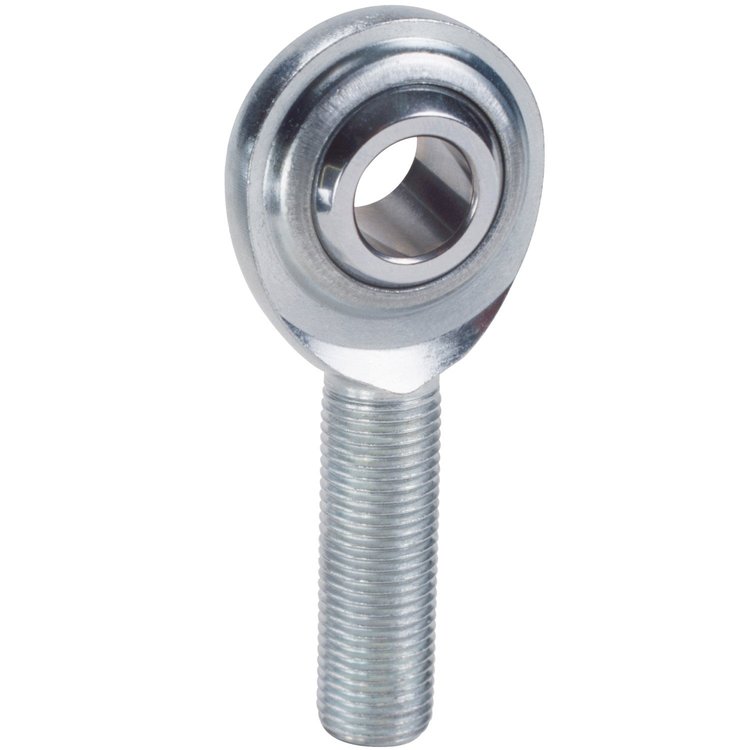

CM Series Rod End Hole I.D.: 1/4"
$658
2 left in stock
Ships on Sep 08, 2026
Lowest Price GuaranteeCM Series Rod EndsLeft Hand
- CM Series Rod End
- Hole I.D.: 1/4''
- Thread Size: 5/16"-24 LH
- Misalign Angle: 27°
- Static Load: 5,534 lbs.
Built for Strength and Corrosion Resistance
For a traditional carbon steel two-piece rod end, QA1 offers this CM Carbon Steel Series rod ends. These metal-to-metal rod ends are built for strength and are protective coated for corrosion resistance. They are available with left and right-hand thread to make your project turn out correctly.
Part TypeRod End
Product LineQA1 CM Series Rod Ends
BrandQA1
Package Height0.37
Package Width0.87
Package Length2.31
Weight0.06 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.25 in (31.8 mm)
Rod End Head Bore Size0.25 in (6.4 mm)
Rod End Thread Size (In.)5/16-24 LH
QuantitySold individually
Rod End Centerline Length1.875 in (47.6 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)27 degrees
Rod End Head Diameter0.875 in (22.2 mm)
Rod End Ball Width0.375 in (9.5 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.375 in (9.5 mm)
Rod End Static Load Capacity (Lbs.)5,534
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberCML4-5
Package Qty1
Package TypeEA
