Vehicle Info NeededQA1PART NUMBER: 122-CML4

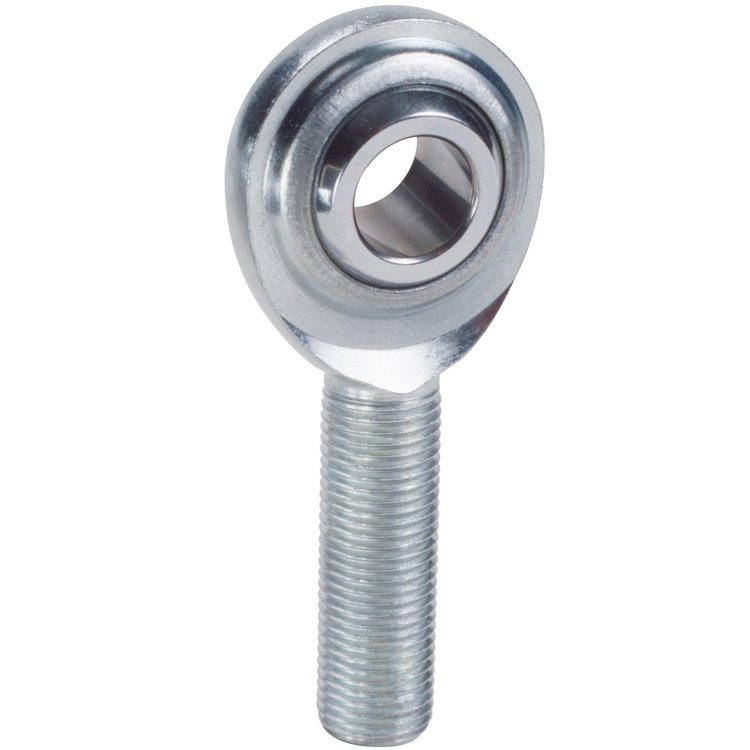

CM Series Rod End Hole I.D.: 1/4"
$399
More than 10 available
Ships on Sep 08, 2026
Lowest Price GuaranteeCM Series Rod EndsLeft Hand
- CM Series Rod End
- Hole I.D.: 1/4''
- Thread Size: 1/4"-28 LH
- Misalign Angle: 20°
- Static Load: 3,435 lbs.
Built for Strength and Corrosion Resistance
For a traditional carbon steel two-piece rod end, QA1 offers this CM Carbon Steel Series rod ends. These metal-to-metal rod ends are built for strength and are protective coated for corrosion resistance. They are available with left and right-hand thread to make your project turn out correctly.
Part TypeRod End
Product LineQA1 CM Series Rod Ends
BrandQA1
Package Height1.9
Package Width2.5
Package Length4.4
Weight0.05 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1 in (25.4 mm)
Rod End Head Bore Size0.25 in (6.4 mm)
Rod End Thread Size (In.)1/4-28 LH
QuantitySold individually
Rod End Centerline Length1.562 in (39.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)27 degrees
Rod End Head Diameter0.75 in (19.1 mm)
Rod End Ball Width0.375 in (9.5 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.375 in (9.5 mm)
Rod End Static Load Capacity (Lbs.)2,835
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberCML4
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
