Vehicle Info NeededQA1PART NUMBER: 122-CML5T

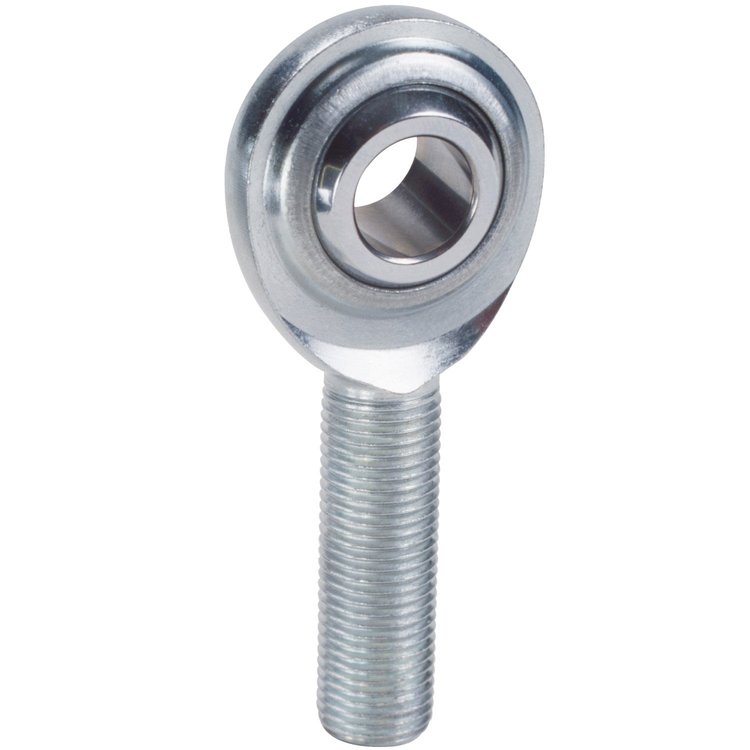

CML5T C Series Rod End, Rod End (C) 2-Pc Carbon M-L 5/16-5/16 PTFE
$899
Ships on 09/21/2026
Lowest Price GuaranteeC Series Rod EndRod End (C) 2-Pc Carbon M-L 5/16-5/16 PTFE
QA1 CML5T Features:
For a self-lubricating version of a traditional carbon steel two-piece male rod end, QA1 offers its CM-T Carbon Steel Series rod ends with a PTFE liner. These rod ends are protective coated for corrosion resistance and are available in inch dimensions with left and right hand threads. Stud configurations are available by calling 800-721-7761. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , BODY, Carbon Steel, Protective Coated for Corrosion Resistance, PTFE Lined.
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Part TypeRod End
BrandQA1
Package Height0.43
Package Width0.87
Package Length2.31
Weight0.07 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.25 in (31.8 mm)
Rod End Head Bore Size0.313 in (8 mm)
Rod End Thread Size (In.)5/16-24 LH
QuantitySold individually
Rod End Centerline Length1.875 in (47.6 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)22 degrees
Rod End Head Diameter0.875 in (22.2 mm)
Rod End Ball Width0.437 in (11.1 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.437 in (11.1 mm)
Rod End Static Load Capacity (Lbs.)4,517
Rod End MaterialCarbon steel
Rod End StylePTFE lined
Part FitmentSemi Universal
Vendor Part NumberCML5T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
