Vehicle Info NeededQA1PART NUMBER: 122-CML7

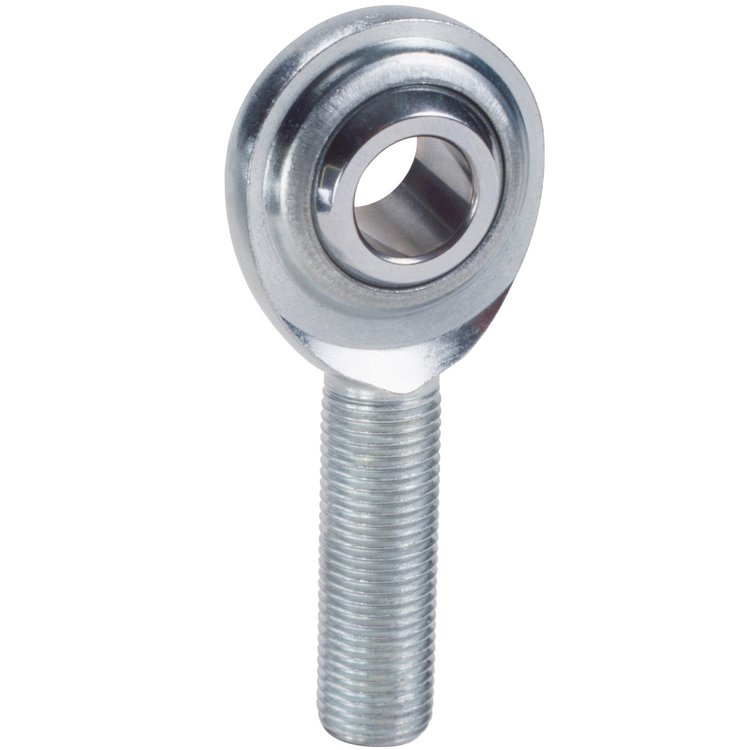

CM Series Rod End Hole I.D.: 7/16"
$599
More than 10 available
Ships on Sep 08, 2026
Lowest Price GuaranteeCM Series Rod EndsLeft Hand
- CM Series Rod End
- Hole I.D.: 7/16''
- Thread Size: 7/16"-20 LH
- Misalign Angle: 21°
- Static Load: 7,897 lbs.
Part TypeRod End
BrandQA1
Package Height1.9
Package Width2.4
Package Length4.3
Weight0.1475 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.375 in (34.9 mm)
Rod End Head Bore Size0.438 in (11.1 mm)
Rod End Thread Size (In.)7/16-20 LH
QuantitySold individually
Rod End Centerline Length2.125 in (54 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)21 degrees
Rod End Head Diameter1.125 in (28.6 mm)
Rod End Ball Width0.562 in (14.3 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.562 in (14.3 mm)
Rod End Static Load Capacity (Lbs.)7,897
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberCML7
Package Qty1
Package TypeEA
