QA1PART NUMBER: 122-CML8-10

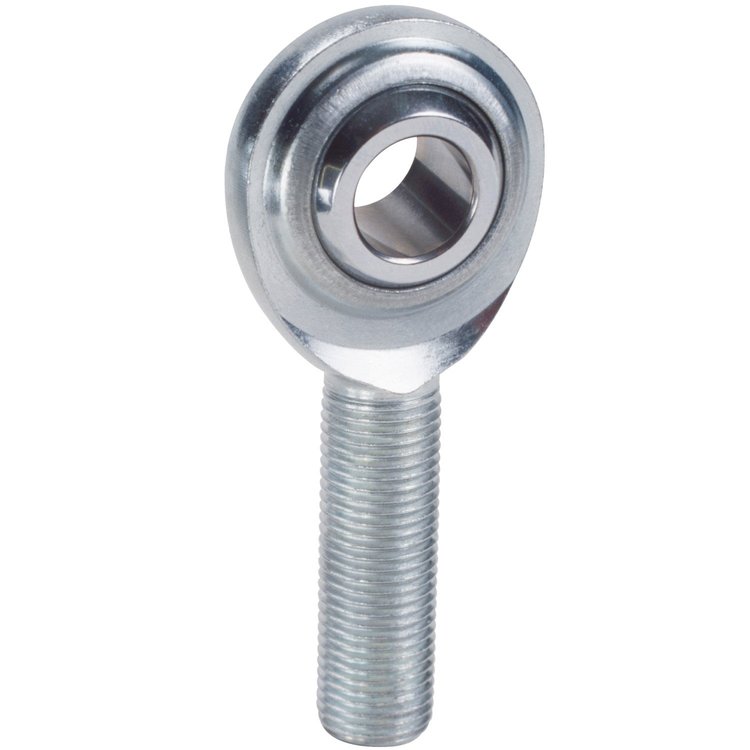

CM Series Rod End Hole I.D.: 1/2" Thread Size: 5/8" LH

Name: CM Series Rod End Hole I.D.: 1/2" Thread Size: 5/8" LH
Brand: QA1
SKU: 122-CML8-10
Price: 8.99 USD
Availability: InStock

^$8⁹⁹

Ships on 09/08/2026

Lowest Price Guarantee

CM Series Rod Ends

Left Hand

Part TypeRod End

BrandQA1

Package Height2.8

Package Width3.0

Package Length4.3

Weight0.225 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishZinc plated

Thread Length1.625 in (41.3 mm)

Rod End Head Bore Size0.5 in (12.7 mm)

Rod End Thread Size (In.)5/8-18 LH

QuantitySold individually

Rod End Centerline Length2.625 in (66.7 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)20 degrees

Rod End Head Diameter1.5 in (38.1 mm)

Rod End Ball Width0.625 in (15.9 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.625 in (15.9 mm)

Rod End Static Load Capacity (Lbs.)13,729

Rod End MaterialCarbon steel

Rod End StyleMetal to metal

Part FitmentUniversal

Vendor Part NumberCML8-10

Package Qty1

Package TypeEA
