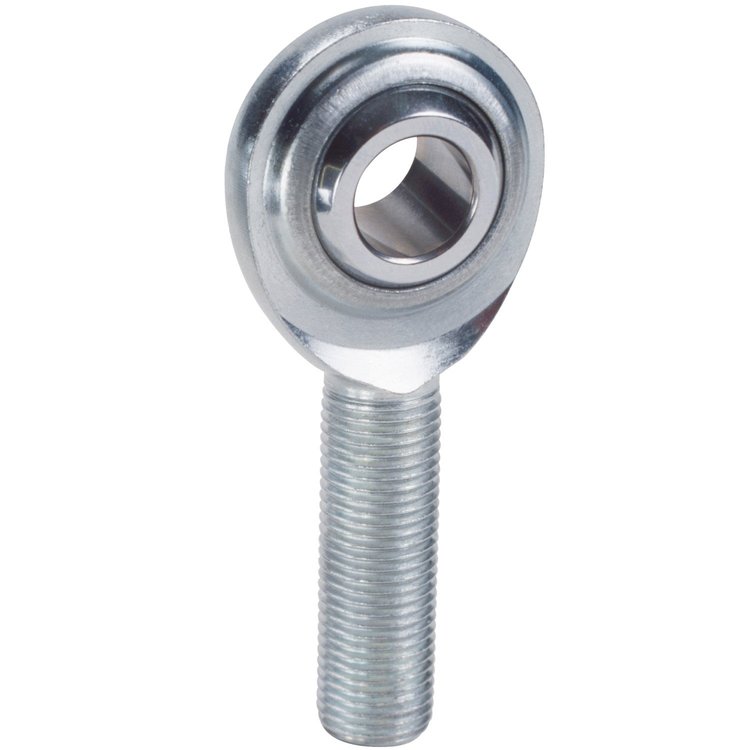

C SERIES ROD END 1/2-20

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

C Series two piece carbon steel rod end. Male mounting with 1/2" bore and left hand 1/2" threads.
For a traditional carbon steel two-piece rod end, QA1 offers its CM Carbon Steel Series rod ends. These metal-to-metal rod ends are protective coated for corrosion resistance and are available in both metric and inch dimensions with left and right hand threads. Grease fittings and stud configurations are available.` For a traditional carbon steel two-piece rod end, QA1 offers its CM Carbon Steel S

Part TypeRod End

BrandQA1

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishZinc plated

Thread Length1.5 in (38.1 mm)

Rod End Head Bore Size0.5 in (12.7 mm)

Rod End Thread Size (In.)1/2-20 LH

QuantitySold individually

Rod End Centerline Length2.438 in (61.9 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)26 degrees

Rod End Head Diameter1.312 in (33.3 mm)

Rod End Ball Width1.15 in (29.2 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width1.15 in (29.2 mm)

Rod End Static Load Capacity (Lbs.)10,046

Rod End MaterialCarbon steel

Rod End StyleMetal to metal

Part FitmentUniversal

Vendor Part NumberCML8-102

Package Qty1

Package TypeEA
