Vehicle Info NeededQA1PART NUMBER: 122-CML8-10T

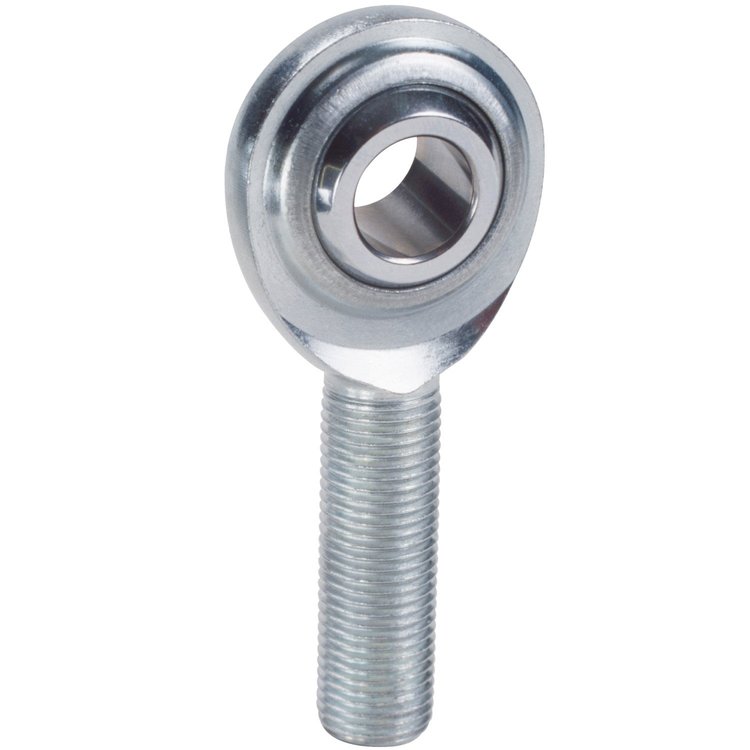

CM-T Series Rod End Hole I.D.: 1/2"
$1199
Ships on 09/29/2026
Lowest Price GuaranteeCM Series Rod EndsLeft Hand
- CM-T Series Rod End
- Hole I.D.: 1/2''
- Thread Size: 5/8"-18 LH
- PTFE Lined
ROD END (C) 2-PC CARBON , M-L 1/2-5/8 TEF
Built for Strength and Corrosion Resistance
For a traditional carbon steel two-piece rod end, QA1 offers this CM Carbon Steel Series rod ends. These metal-to-metal rod ends are built for strength and are protective coated for corrosion resistance. They are available with left and right-hand thread to make your project turn out correctly.
Part TypeRod End
Product LineQA1 CM Series Rod Ends
BrandQA1
Package Height0.8
Package Width1.7
Package Length3.4
Weight0.4 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.625 in (41.3 mm)
Rod End Head Bore Size0.5 in (12.7 mm)
Rod End Thread Size (In.)5/8-18 LH
QuantitySold individually
Rod End Centerline Length2.625 in (66.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)20 degrees
Rod End Head Diameter1.5 in (38.1 mm)
Rod End Ball Width0.625 in (15.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.625 in (15.9 mm)
Rod End Static Load Capacity (Lbs.)13,729
Rod End MaterialCarbon steel
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberCML8-10T
Package Qty1
Package TypeEA
