QA1PART NUMBER: 122-CMR12

CM Series Rod End Hole I.D.: 3/4"

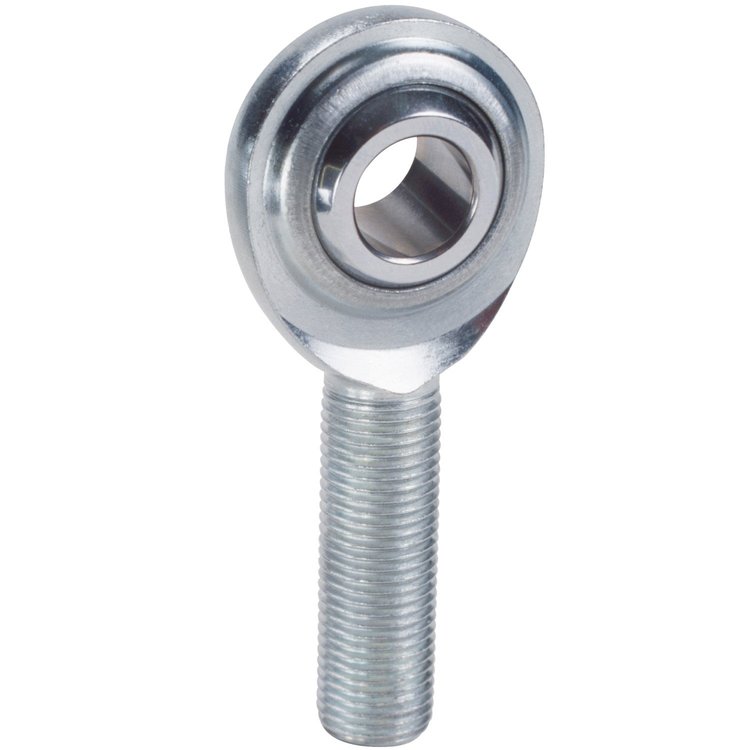

Name: CM Series Rod End Hole I.D.: 3/4"
Brand: QA1
SKU: 122-CMR12
Price: 11.99 USD
Availability: InStock

^$11⁹⁹

Ships Tomorrow

Lowest Price Guarantee

Best Value

555-64107

Two-Piece Rod End with Jam Nut 3/4" Hole

^$24⁹⁹

CM Series Rod Ends

Right Hand

Hole I.D.: 3/4''
Thread Size: 3/4"-16 RH
Misalign Angle: 24°
Static Load: 15,894 lbs.

Built for Strength and Corrosion Resistance

For a traditional carbon steel two-piece rod end, QA1 offers this CM Carbon Steel Series rod ends. These metal-to-metal rod ends are built for strength and are protective coated for corrosion resistance. They are available with left and right-hand thread to make your project turn out correctly.

Part TypeRod End

Product LineQA1 CM Series Rod Ends

BrandQA1

Package Height1.0

Package Width1.7

Package Length4.0

Weight0.54 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishZinc plated

Thread Length1.75 in (44.5 mm)

Rod End Head Bore Size0.75 in (19.1 mm)

Rod End Thread Size (In.)3/4-16 RH

QuantitySold individually

Rod End Centerline Length2.875 in (73 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)24 degrees

Rod End Head Diameter1.75 in (44.5 mm)

Rod End Ball Width0.875 in (22.2 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.875 in (22.2 mm)

Rod End Static Load Capacity (Lbs.)15,894

Rod End MaterialCarbon steel

Rod End StyleMetal to metal

Part FitmentUniversal

Vendor Part NumberCMR12

Package Qty1

Package TypeEA
