Vehicle Info Needed

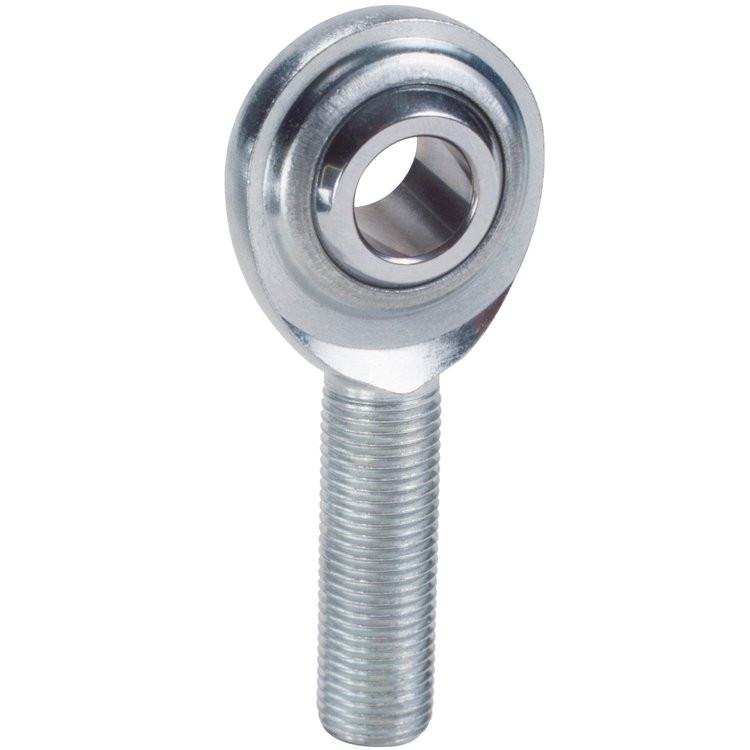

QA1PART NUMBER: 122-CMR3

CM Series Rod End Hole I.D.: .1900"

Name: CM Series Rod End Hole I.D.: .1900"
Brand: QA1
SKU: 122-CMR3
Price: 3.99 USD
Availability: InStock

^$3⁹⁹

Ships on 09/08/2026

Lowest Price Guarantee

CM Series Rod Ends

Right Hand

Part TypeRod End

BrandQA1

Package Height0.2

Package Width0.5

Package Length1.5

Weight0.05 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishZinc plated

Rod End Thread Size10-32 RH NF

Thread Length0.75 in (19.1 mm)

Rod End Head Bore Size0.19 in (4.8 mm)

QuantitySold individually

Rod End Centerline Length1.25 in (31.8 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)20 degrees

Rod End Head Diameter0.625 in (15.9 mm)

Rod End Ball Width0.312 in (7.9 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.312 in (7.9 mm)

Rod End Static Load Capacity (Lbs.)1,558

Rod End MaterialCarbon steel

Rod End StyleMetal to metal

Part FitmentUniversal

Vendor Part NumberCMR3

Package Qty1

Package TypeEA

No Questions

No Reviews

Some parts are not legal for use in California or other states with similar laws / regulations

⚠️ Warning
