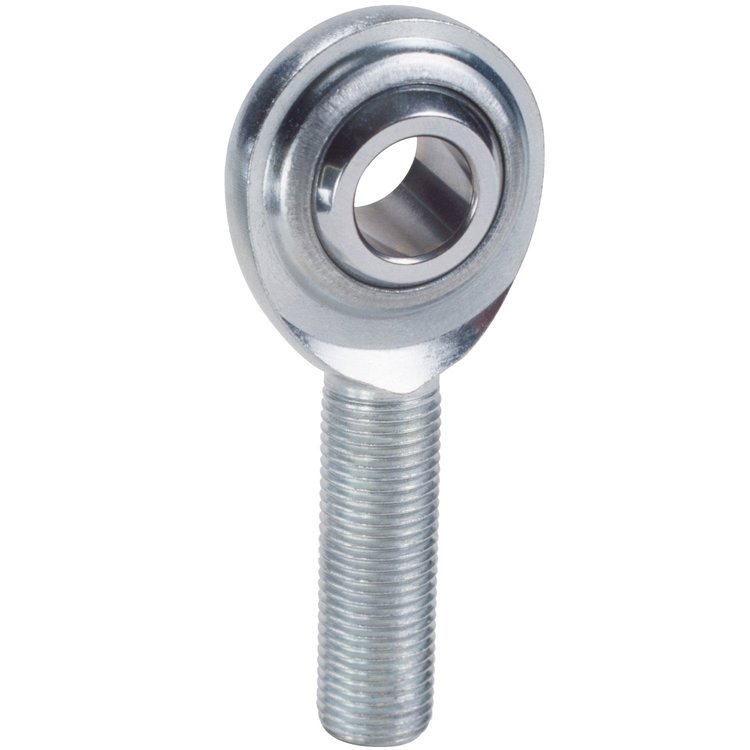

ROD END 3/8 W-7/16 THR

Name: ROD END 3/8 W-7/16 THR
Brand: QA1
SKU: 122-CMR6-7
Price: 5.99 USD
Availability: InStock

^$5⁹⁹

8 left in stock

Ships on Sep 08, 2026

Lowest Price Guarantee

C Series two piece carbon steel rod end. Male mounting with 3/8" bore and right hand 7/16" threads.
For a traditional carbon steel two-piece rod end, QA1 offers its CM Carbon Steel Series rod ends. These metal-to-metal rod ends are protective coated for corrosion resistance and are available in both metric and inch dimensions with left and right hand threads. Grease fittings and stud configurations are available.` For a traditional carbon steel two-piece rod end, QA1 offers its CM Carbon Steel S

Part TypeRod End

BrandQA1

Package Height0.5

Package Width3.0

Package Length5.0

Weight0.15 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishZinc plated

Thread Length1.375 in (34.9 mm)

Rod End Head Bore Size0.375 in (9.5 mm)

Rod End Thread Size (In.)7/16-20 RH

QuantitySold individually

Rod End Centerline Length2.125 in (54 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)22 degrees

Rod End Head Diameter1.125 in (28.6 mm)

Rod End Ball Width0.5 in (12.7 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.5 in (12.7 mm)

Rod End Static Load Capacity (Lbs.)8,278

Rod End MaterialCarbon steel

Rod End StyleMetal to metal

Part FitmentUniversal

Vendor Part NumberCMR6-7

Package Qty1

Package TypeEA
