Vehicle Info NeededQA1PART NUMBER: 122-CMR7-8

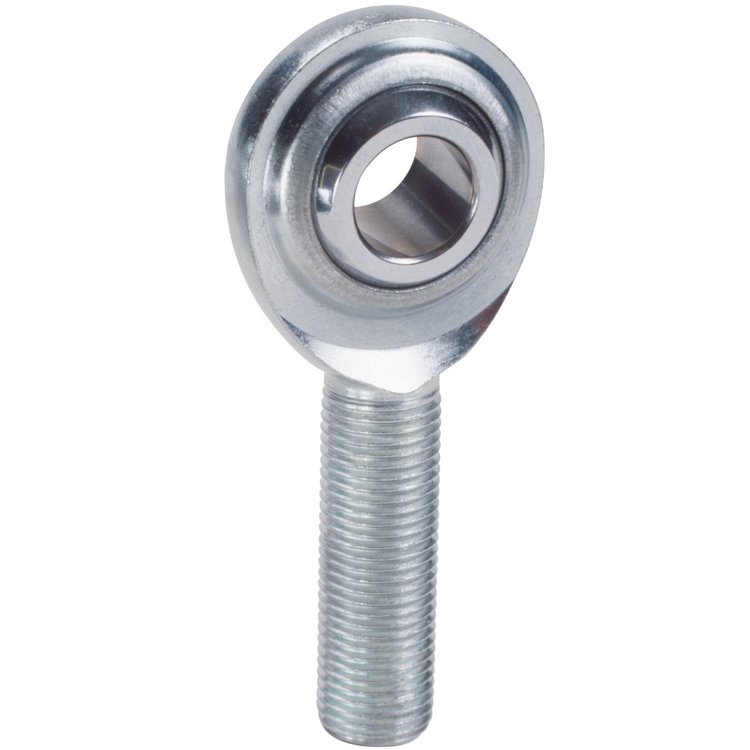

CMR7-8 C Series Rod End, Rod End (C) 2-Pc Carbon M-R 7/16-1/2
$699
Ships Tomorrow
Lowest Price GuaranteeC Series Rod EndRod End (C) 2-Pc Carbon M-R 7/16-1/2
QA1 CMR7-8 Features:
For a self-lubricating version of a traditional carbon steel two-piece male rod end, QA1 offers its CM-T Carbon Steel Series rod ends with a PTFE liner. These rod ends are protective coated for corrosion resistance and are available in inch dimensions with left and right hand threads. Stud configurations are available by calling 800-721-7761. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , BODY, Carbon Steel, Protective Coated for Corrosion Resistance, PTFE Lined.
- Rod ends for every motorsport need
- Precise tolerances
- Guaranteed strength, durability and quality champions demand
Part TypeRod End
BrandQA1
Package Height1.0
Package Width2.0
Package Length4.0
Weight0.25 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.5 in (38.1 mm)
Rod End Head Bore Size0.438 in (11.1 mm)
Rod End Thread Size (In.)1/2-20 RH
QuantitySold individually
Rod End Centerline Length2.438 in (61.9 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)21 degrees
Rod End Head Diameter1.312 in (33.3 mm)
Rod End Ball Width0.562 in (14.3 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.562 in (14.3 mm)
Rod End Static Load Capacity (Lbs.)11,191
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentSemi Universal
Vendor Part NumberCMR7-8
Package Qty1
Package TypeEA
