Vehicle Info NeededQA1PART NUMBER: 122-CMR7
CM Series Rod End Hole I.D.: 7/16"
$599
7 left in stock
Ships Today
Lowest Price Guarantee

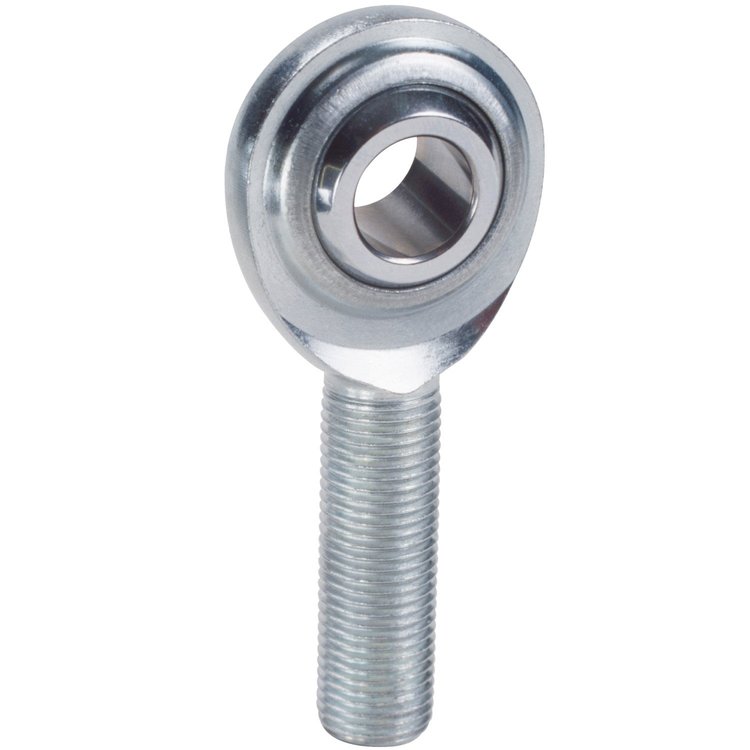

CM Series Rod EndsRight Hand
- CM Series Rod End
- Hole I.D.: 7/16''
- Thread Size: 7/16"-20 RH
- Misalign Angle: 21°
- Static Load: 7,897 lbs.
Built for Strength and Corrosion Resistance
For a traditional carbon steel two-piece rod end, QA1 offers this CM Carbon Steel Series rod ends. These metal-to-metal rod ends are built for strength and are protective coated for corrosion resistance. They are available with left and right-hand thread to make your project turn out correctly.
Part TypeRod End
Product LineQA1 CM Series Rod Ends
BrandQA1
Package Height1.5
Package Width2.0
Package Length3.0
Weight0.152 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.375 in (34.9 mm)
Rod End Head Bore Size0.438 in (11.1 mm)
Rod End Thread Size (In.)7/16-20 RH
QuantitySold individually
Rod End Centerline Length2.125 in (54 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)21 degrees
Rod End Head Diameter1.125 in (28.6 mm)
Rod End Ball Width0.562 in (14.3 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.562 in (14.3 mm)
Rod End Static Load Capacity (Lbs.)7,897
Rod End MaterialCarbon steel
Rod End StyleMetal to metal
Part FitmentUniversal
Vendor Part NumberCMR7
Package Qty1
Package TypeEA
