Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

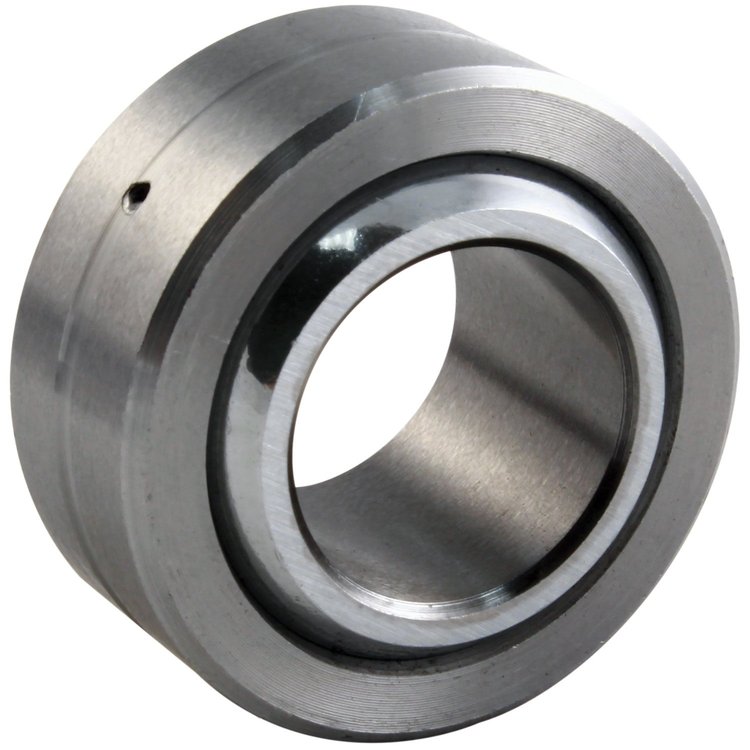

COM Series BearingBearing (Com) 52100 Ht Cp/ Carbon Ht Zp 1
QA1 COM16 Features:
For an economical traditional spherical bearing, QA1's COM and COM-T Series is the perfect choice. Each bearing is made from chromoly steel with an optional self-lubricating PTFE liner. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , LINER (COM-T), PTFE, Self-Lubricating, , RACE, Chromoly Steel (Mfr.'s Option - Stainless Steel), Heat Treated, Protective Coated for Corrosion Resistance.
- Wide selection for a variety of uses
- Available in chromoly or stainless
- Huge selection of inch and metric sizes
Part TypeSuspension Bearing
BrandQA1
Package Height1.0
Package Width1.75
Package Length1.75
Weight0.37 PG
Part CategoryPerformance Parts
Ult. Static Radial Load (Lbs.)82,800
Race Width0.797 in (20.2 mm)
Receiver Race Diameter1.75 in (44.5 mm)
Rod End Bearing MaterialSteel
QuantitySold individually
Inner Ball Diameter1 in (25.4 mm)
Rod End Ball Diameter1.5 in (38.1 mm)
Chamfer Reference0.044 in (1.118 mm)
Part FitmentSemi Universal
Rod End Misalign Angle (Deg)10 degrees
Inner Ball Width1 in (25.4 mm)
Vendor Part NumberCOM16
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
