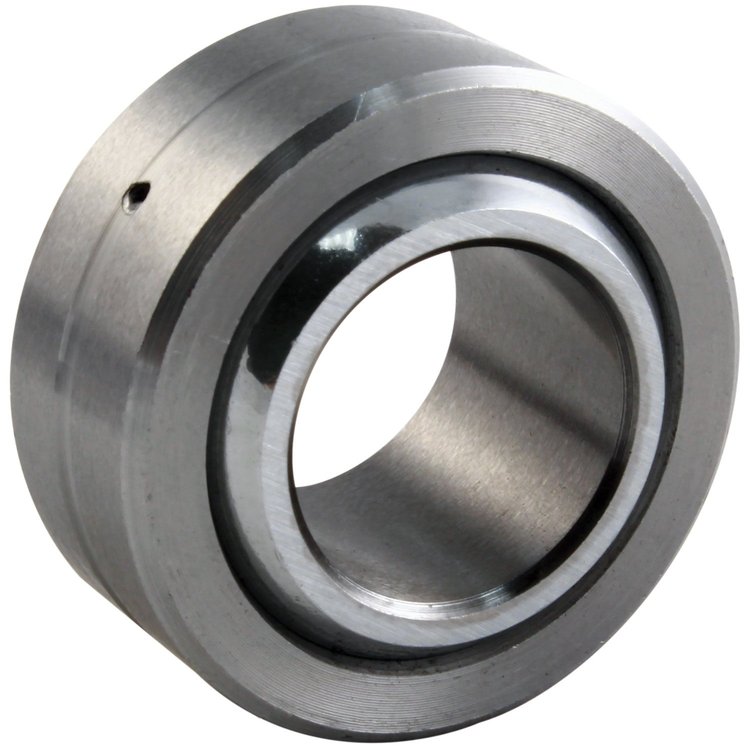

COM2 COM Series Bearing, Bearing (Com) 52100 Ht Cp/ Carbon Ht Zp 1/8
Product Discontinued
QA1PART NUMBER: 122-COM2

COM2 COM Series Bearing, Bearing (Com) 52100 Ht Cp/ Carbon Ht Zp 1/8

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

COM Series Bearing
  • Bearing (Com) 52100 Ht Cp/ Carbon Ht Zp 1/8

    QA1 COM2 Features:

    For an economical traditional spherical bearing, QA1's COM and COM-T Series is the perfect choice. Each bearing is made from chromoly steel with an optional self-lubricating PTFE liner. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , LINER (COM-T), PTFE, Self-Lubricating, , RACE, Chromoly Steel (Mfr.'s Option - Stainless Steel), Heat Treated, Protective Coated for Corrosion Resistance.

    • Wide selection for a variety of uses
    • Available in chromoly or stainless
    • Huge selection of inch and metric sizes

    • These spherical bearings from QA1 are manufactured from high quality 52100 bearing steel and chromoly steel. The COM/COM-T series is available with or without a PTFE Liner. The COM-T has the PTFE Liner while the COM does not.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground
    Show More

    Race

    • Chromoly Steel OR Stainless Steel
    • Heat Treated
    • PTFE Lined (COM-T)

    Spherical Bearing Dimension Chart

    Part TypeSuspension Bearing
    Product LineQA1 Spherical COM/COM-T Bearings
    BrandQA1
    Package Height0.25
    Package Width0.46
    Package Length0.46
    Weight0.01 PG
    Part CategoryPerformance Parts
    Ult. Static Radial Load (Lbs.)3,200
    Race Width0.187 in (4.7 mm)
    Receiver Race Diameter0.469 in (11.9 mm)
    Rod End Bearing MaterialSteel
    QuantitySold individually
    Inner Ball Diameter0.165 in (4.191 mm)
    Rod End Ball Diameter0.343 in (8.7 mm)
    Chamfer Reference0.02 in (0.508 mm)
    Part FitmentSemi Universal
    Rod End Misalign Angle (Deg)9 degrees
    Inner Ball Width0.25 in (6.35 mm)
    Vendor Part NumberCOM2
    Package Qty1
    Package TypeEA
