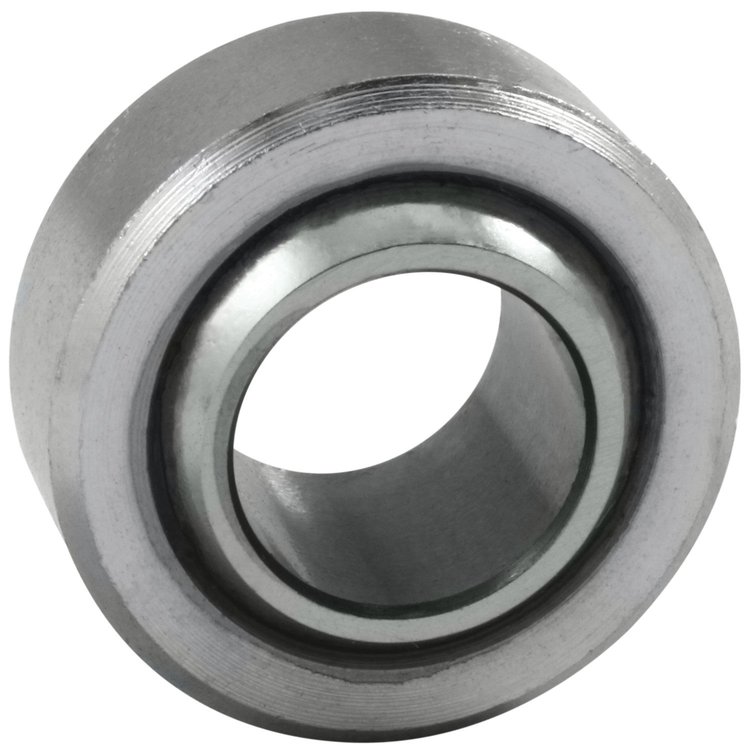

COM7T COM Series Bearing, Bearing (Com) 52100 Ht Cp/ Carbon Ht Zp 7/16 PTFE
Product Discontinued
QA1PART NUMBER: 122-COM7T

COM7T COM Series Bearing, Bearing (Com) 52100 Ht Cp/ Carbon Ht Zp 7/16 PTFE

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

COM Series Bearing
  • Bearing (Com) 52100 Ht Cp/ Carbon Ht Zp 7/16 PTFE

    QA1 COM7T Features:

    For an economical traditional spherical bearing, QA1's COM and COM-T Series is the perfect choice. Each bearing is made from chromoly steel with an optional self-lubricating PTFE liner. BALL, 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground, , LINER (COM-T), PTFE, Self-Lubricating, , RACE, Chromoly Steel (Mfr.'s Option - Stainless Steel), Heat Treated, Protective Coated for Corrosion Resistance.

    • Wide selection for a variety of uses
    • Available in chromoly or stainless
    • Huge selection of inch and metric sizes
  • These spherical bearings from QA1 are manufactured from high quality 52100 bearing steel and chromoly steel. The COM/COM-T series is available with or without a PTFE Liner. The COM-T has the PTFE Liner while the COM does not.

    Ball

    • 52100 Bearing Steel
    • Heat Treated
    • Hard Chrome Plated
    • Precision Ground
    Show More

    Race

    • Chromoly Steel OR Stainless Steel
    • Heat Treated
    • PTFE Lined (COM-T)

    Spherical Bearing Dimension Chart

    Part TypeSuspension Bearing
    Product LineQA1 Spherical COM/COM-T Bearings
    BrandQA1
    Package Height0.43
    Package Width0.9
    Package Length0.9
    Weight0.05 PG
    Part CategoryPerformance Parts
    Ult. Static Radial Load (Lbs.)14,180
    Race Width0.343 in (8.7 mm)
    Receiver Race Diameter0.906 in (23 mm)
    Rod End Bearing MaterialSteel
    QuantitySold individually
    Inner Ball Diameter0.438 in (11.125 mm)
    Rod End Ball Diameter0.687 in (17.4 mm)
    Chamfer Reference0.032 in (0.813 mm)
    Part FitmentSemi Universal
    Rod End Misalign Angle (Deg)8 degrees
    Inner Ball Width0.437 in (11.1 mm)
    Vendor Part NumberCOM7T
    Package Qty1
    Package TypeEA
