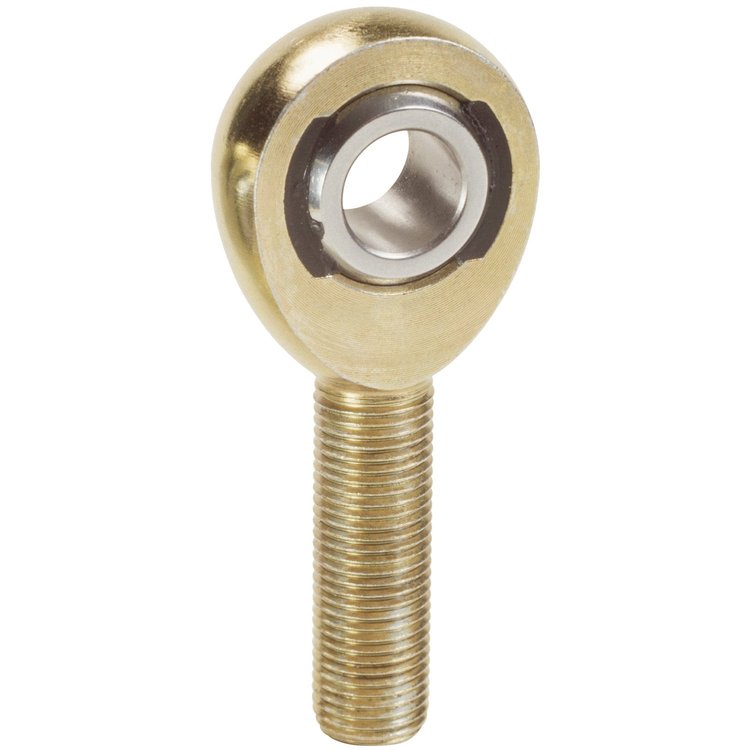

EXM Carbon Steel Series Rod End Hole I.D.: 1.0000"
Product Discontinued
QA1PART NUMBER: 122-EXML16-1

EXM Carbon Steel Series Rod End Hole I.D.: 1.0000"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

EXM Carbon Steel Rod End
  • Left Hand Thread
    • EXM Carbon Steel Series Rod End
    • Hole I.D.: 1.0000"
    • LH Thread: 1-14 UNS

      ROD END (EX) ENDURA CARBON, M-L 1-1 (-14 THRD)

    EXM Male Carbon Steel Series Rod Ends: As an economical alternative to chromoly, QA1 is the exclusive provider of carbon steel loaded slot rod ends. QA1's EXM Carbon Steel Series male rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating. The PTFE®/Kevlar® injection molded race won't pound out like other styles and keeps dirt and debris out for excellent performance.

    • Ball: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
    • Race: PTFE®/Kevlar®, Self-Lubricating, Self-Sealing
    • Body: Carbon Steel, Protective Coated for Corrosion Resistance
    • Exclusive Features: Metal to Metal Support for Heavy Shock Loads and Increased Cross-Sectional Thickness for Greater Tensile Strength.
    Show More

    Part TypeRod End
    Product LineQA1 Endura EXM Series Male Rod Ends
    BrandQA1
    Package Height1.37
    Package Width2.75
    Package Length5.5
    Weight1.89 PG
    Part CategoryPerformance Parts
    Rod End AttachmentMale Threads
    Rod End FinishZinc plated
    Thread Length2.125 in (54 mm)
    Rod End Head Bore Size1 in (25.4 mm)
    Rod End Thread Size (In.)1-14 LH UNS
    QuantitySold individually
    Rod End Centerline Length4.125 in (104.8 mm)
    Jam Nut IncludedNo
    Rod End Misalign Angle (Deg)17 degrees
    Rod End Head Diameter2.75 in (69.9 mm)
    Rod End Ball Width1.375 in (34.9 mm)
    Grease FittingNo
    Rod End Construction2-piece
    Heat-TreatedYes
    Rod End Head Width1.375 in (34.9 mm)
    Rod End Static Load Capacity (Lbs.)43,541
    Rod End MaterialCarbon steel
    Rod End StylePTFE/KEVLAR« lined
    Part FitmentUniversal
    Vendor Part NumberEXML16-1
    Package Qty1
    Package TypeEA
    Some parts are not legal for use in California or other states with similar laws / regulations
