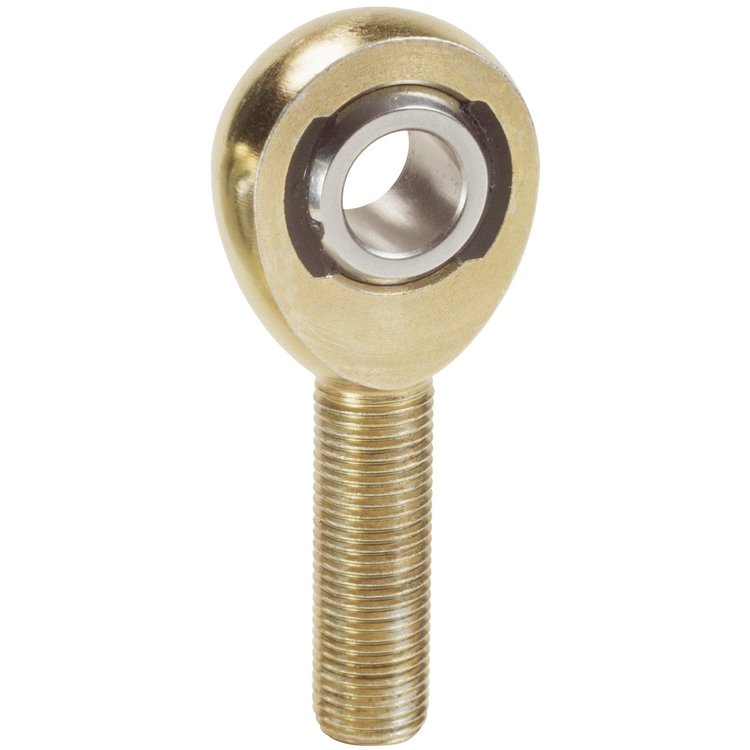

EXM Carbon Steel Series Rod End Hole I.D.: .2500"

Name: EXM Carbon Steel Series Rod End Hole I.D.: .2500"
Brand: QA1
SKU: 122-EXML4
Price: 9.89 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

EXM Carbon Steel Rod End

Left Hand Thread

Part TypeRod End

BrandQA1

Package Height0.37

Package Width0.75

Package Length1.93

Weight0.04 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishZinc plated

Thread Length1 in (25.4 mm)

Rod End Head Bore Size0.25 in (6.4 mm)

Rod End Thread Size (In.)1/4-28 LH

QuantitySold individually

Rod End Centerline Length1.562 in (39.7 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)16 degrees

Rod End Head Diameter0.75 in (19.1 mm)

Rod End Ball Width0.375 in (9.5 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.375 in (9.5 mm)

Rod End Static Load Capacity (Lbs.)2,158

Rod End MaterialCarbon steel

Rod End StylePTFE/KEVLAR« lined

Part FitmentUniversal

Vendor Part NumberEXML4

Package Qty1

Package TypeEA
