QA1PART NUMBER: 122-EXML7-8

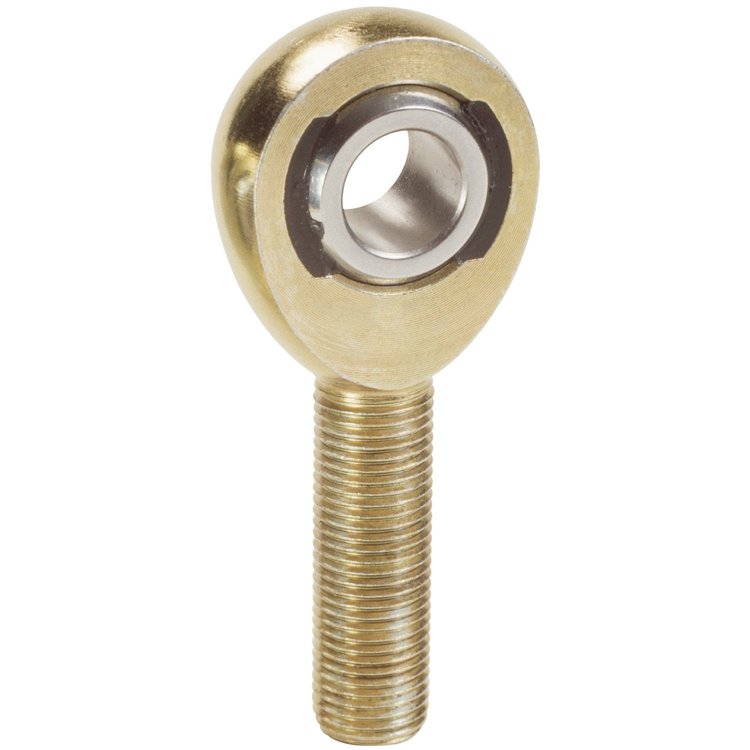

EXM Carbon Steel Series Rod End Hole I.D.: .4375"
$1299
EXM Carbon Steel Rod EndLeft Hand Thread
- EXM Carbon Steel Series Rod End
- Hole I.D.: .4375"
- LH Thread: 1/2"-20
ROD END (EX) ENDURA CARBON, M-L 7/16-1/2
EXM Male Carbon Steel Series Rod Ends: As an economical alternative to chromoly, QA1 is the exclusive provider of carbon steel loaded slot rod ends. QA1's EXM Carbon Steel Series male rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating. The PTFE®/Kevlar® injection molded race won't pound out like other styles and keeps dirt and debris out for excellent performance.
- Ball: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
- Race: PTFE®/Kevlar®, Self-Lubricating, Self-Sealing
- Body: Carbon Steel, Protective Coated for Corrosion Resistance
- Exclusive Features: Metal to Metal Support for Heavy Shock Loads and Increased Cross-Sectional Thickness for Greater Tensile Strength.
Show More
Part TypeRod End
Product LineQA1 Endura EXM Series Male Rod Ends
BrandQA1
Package Height0.56
Package Width1.31
Package Length3.09
Weight0.23 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.5 in (38.1 mm)
Rod End Head Bore Size0.438 in (11.1 mm)
Rod End Thread Size (In.)1/2-20 LH
QuantitySold individually
Rod End Centerline Length2.438 in (61.9 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)12 degrees
Rod End Head Diameter1.312 in (33.3 mm)
Rod End Ball Width0.562 in (14.3 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.562 in (14.3 mm)
Rod End Static Load Capacity (Lbs.)9,620
Rod End MaterialCarbon steel
Rod End StylePTFE/KEVLAR« lined
Part FitmentUniversal
Vendor Part NumberEXML7-8
Package Qty1
Package TypeEA
