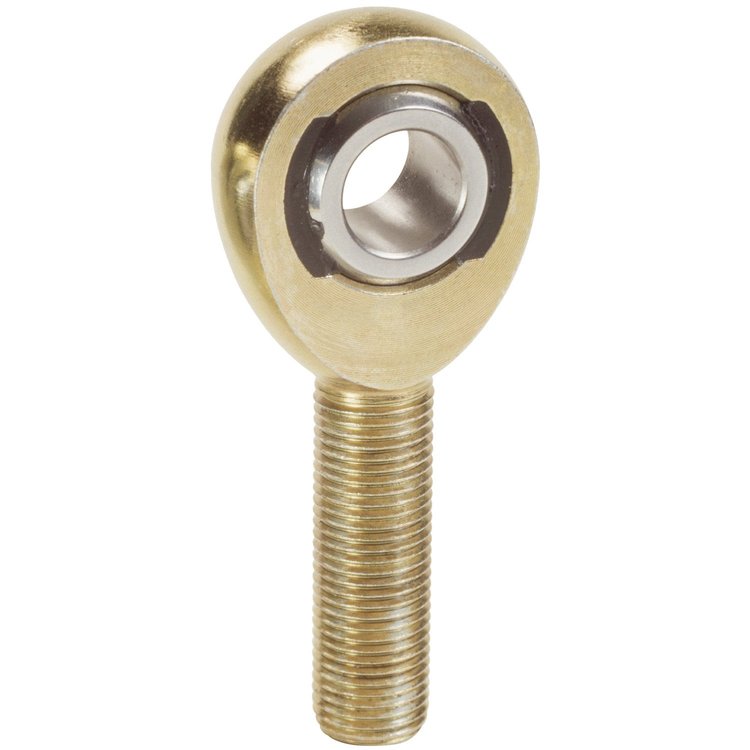

EXM Carbon Steel Series Rod End Hole I.D.: .4375"
Product Discontinued
QA1PART NUMBER: 122-EXML7

EXM Carbon Steel Series Rod End Hole I.D.: .4375"

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

EXM Carbon Steel Rod End
  • Left Hand Thread
    • EXM Carbon Steel Series Rod End
    • Hole I.D.: .4375"
    • LH Thread: 7/16"-20

      ROD END (EX) ENDURA CARBON, M-L 7/16-7/16

    EXM Male Carbon Steel Series Rod Ends: As an economical alternative to chromoly, QA1 is the exclusive provider of carbon steel loaded slot rod ends. QA1's EXM Carbon Steel Series male rod ends have increased cross-sectional thickness and are completely self-sealing and self-lubricating. The PTFE®/Kevlar® injection molded race won't pound out like other styles and keeps dirt and debris out for excellent performance.

    • Ball: 52100 Bearing Steel, Heat Treated, Hard Chrome Plated, Precision Ground
    • Race: PTFE®/Kevlar®, Self-Lubricating, Self-Sealing
    • Body: Carbon Steel, Protective Coated for Corrosion Resistance
    • Exclusive Features: Metal to Metal Support for Heavy Shock Loads and Increased Cross-Sectional Thickness for Greater Tensile Strength.
    Show More

    Part TypeRod End
    Product LineQA1 Endura EXM Series Male Rod Ends
    BrandQA1
    Package Height0.56
    Package Width1.12
    Package Length2.68
    Weight0.15 PG
    Part CategoryPerformance Parts
    Rod End AttachmentMale Threads
    Rod End FinishZinc plated
    Thread Length1.375 in (34.9 mm)
    Rod End Head Bore Size0.438 in (11.1 mm)
    Rod End Thread Size (In.)7/16-20 LH
    QuantitySold individually
    Rod End Centerline Length2.125 in (54 mm)
    Jam Nut IncludedNo
    Rod End Misalign Angle (Deg)14 degrees
    Rod End Head Diameter1.125 in (28.6 mm)
    Rod End Ball Width0.562 in (14.3 mm)
    Grease FittingNo
    Rod End Construction2-piece
    Heat-TreatedYes
    Rod End Head Width0.562 in (14.3 mm)
    Rod End Static Load Capacity (Lbs.)4,218
    Rod End MaterialCarbon steel
    Rod End StylePTFE/KEVLAR« lined
    Part FitmentUniversal
    Vendor Part NumberEXML7
    Package Qty1
    Package TypeEA
