Vehicle Info NeededQA1PART NUMBER: 122-EXMR10-12

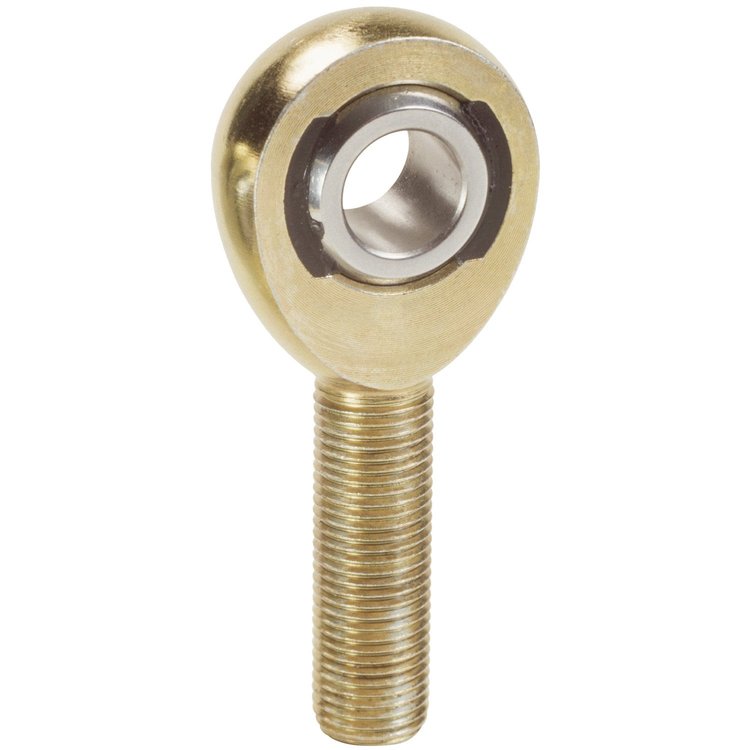

EXM Carbon Steel Series Rod End Hole I.D.: .6250"
$2859
More than 10 available
Ships Today
Lowest Price GuaranteeEXM Carbon Steel Rod EndRight Hand Thread
- EXM Carbon Steel Series Rod End
- Hole I.D.: .6250"
- RH Thread: 3/4"-16
ROD END (EX) ENDURA CARBON, M-R 5/8-3/4
Part TypeRod End
BrandQA1
Package Height0.75
Package Width1.75
Package Length3.75
Weight0.57 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishZinc plated
Thread Length1.75 in (44.5 mm)
Rod End Head Bore Size0.625 in (15.9 mm)
Rod End Thread Size (In.)3/4-16 RH
QuantitySold individually
Rod End Centerline Length2.875 in (73 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)13 degrees
Rod End Head Diameter1.75 in (44.5 mm)
Rod End Ball Width0.75 in (19.1 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.75 in (19.1 mm)
Rod End Static Load Capacity (Lbs.)18,000
Rod End MaterialCarbon steel
Rod End StylePTFE/KEVLAR« lined
Vendor Part NumberEXMR10-12
Package Qty1
Package TypeEA
