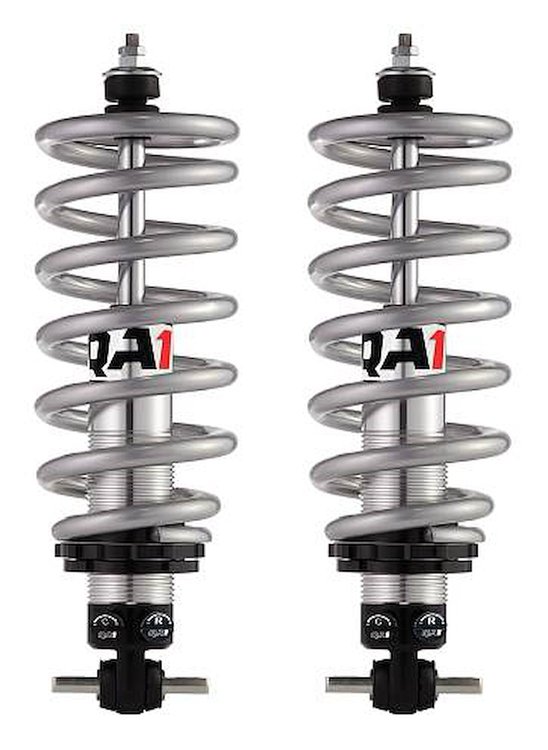

QA1 GD401-08600C Coil-Over System Features:

• Truly independent compression and rebound adjustment
• 18 positions of rebound on one knob and 18 positions of compression on the other knob, providing 324 valving options
• One shock allows for the ultimate in fine-tuning for any application
• Stud Type Upper Mount
• T-Bar Type Lower Mount

QA1 GD401-08600C Coil-Over System Notes:

• Some front applications may require the lower a-arm to be dropped for installation. The body diameter may be too large to allow mounting from the bottom. Some control arm's shock openings may need to be enlarged to accept a QA1 shock
• Stud mounts are measured to the shoulder of the stud. Add 13/16 in. for installed compressed length per stud mount. Loops and t-bars are measured to the center of the loop. Lengths may vary slightly.
