Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

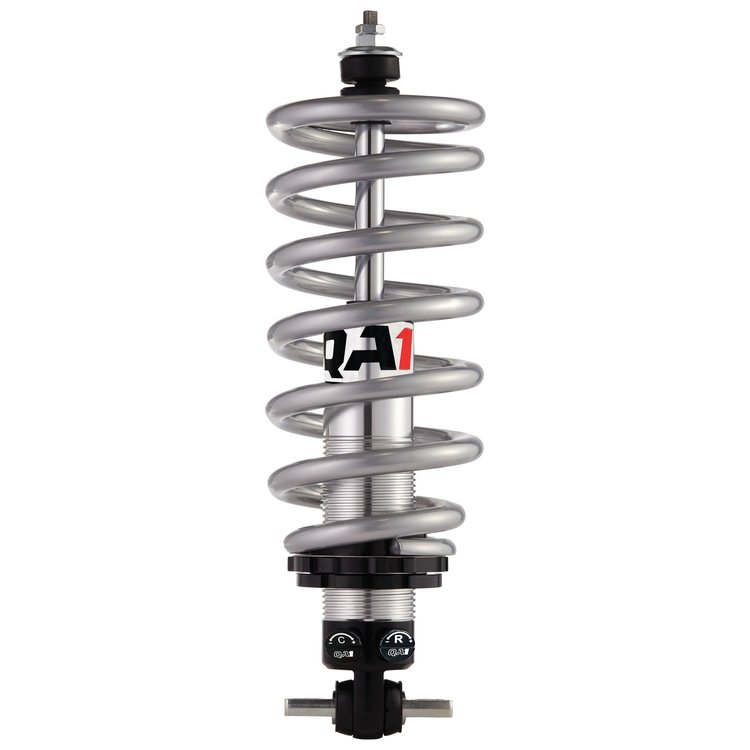

Corvette C5 Double Adjustable Pro Coil Systems
- Pro Coil Front Coil-Over System
- Double Adjustable Shock
- 10.98" Compressed / 14.9" Extended Height
- 9" Spring Free Length
- Spring Rate: 650 lbs/in.
Features: - Truly independent compression and rebound adjustment.
- 18 positions of rebound on one knob and 18 positions of compression on the other knob, providing 324 valving options.
- One shock allows for the ultimate in fine-tuning for any application. Shock Mount Type:
- Stud Type Upper Mount
- T-Bar Type Lower Mount
Part TypeShock Absorber and Coil Spring Assembly
BrandQA1
Package Height6.0
Package Width10.0
Package Length25.0
Weight21.95 PG
Part CategoryPerformance Parts
Adjustable ValvingYes
Hardware IncludedYes
Number Of Valving Selections324
Gas ChargedNo
Crossmember IncludedNo
Bushing ColorBlack
Suspension Height Adjustment (In.)1.0-2.2 lowered
Lower MountTie bar
Shock Body FinishNatural
Shock Body MaterialAluminum
Body Diameter2 in (50.8 mm)
Extended Length14.9 in (378.46 mm)
Coil-Over Springs IncludedYes
Spring Rate650 lbs./in.
Bushing MaterialPolyurethane
Adjustable Mounting Bracket IncludedNo
Spring FinishSilver powdercoated
Welding RequiredNo
QuantitySold as a kit
Coil-Over Kit PositionFront
Upper MountStud
Shocks IncludedYes
Collapsed Length10.98 in (278.892 mm)
Internal DesignTwin-tube
Vendor Part NumberGD402-09650
Package Qty1
Package TypeEA
No Questions
No Reviews
