Vehicle Info NeededQA1PART NUMBER: 122-GD501-10450C

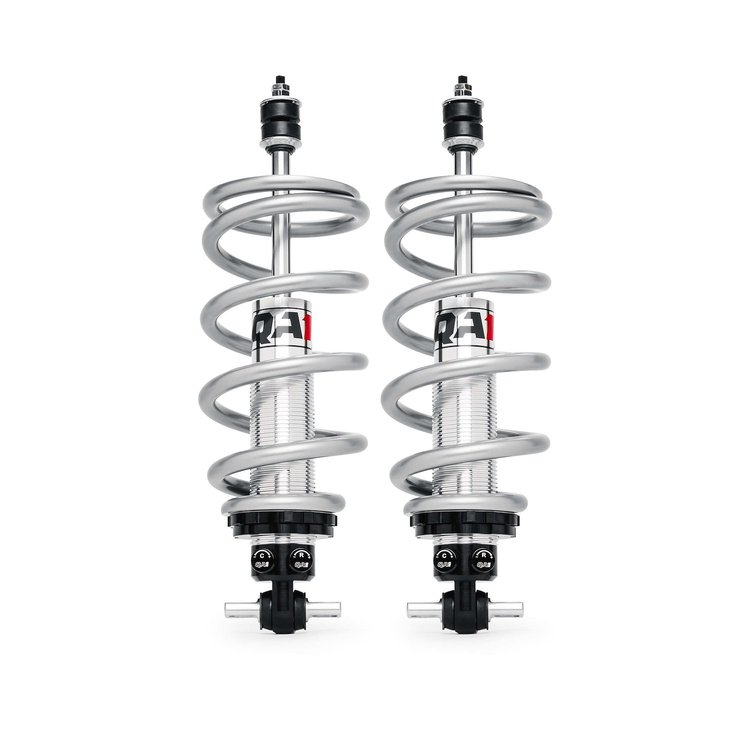

Pro Coil Front Coil-Over System Double Adjustable Shock
$96495
1 left in stock
Ships Today
Lowest Price GuaranteeSpring Style "C"1970-1981 Camaro / Firebird
- Pro Coil Front Coil-Over System
- Double Adjustable Shock
- 10.5'' Compressed / 15'' Extended Shock Height
- 10'' Spring Free Length
- 1901-2000 lbs. Front End Weight
- 450 lbs/in. Spring Rate
Features: - Truly independent compression and rebound adjustment.
- 18 positions of rebound on one knob and 18 positions of compression on the other knob, providing 324 valving options.
- One shock allows for the ultimate in fine-tuning for any application. Shock Mount Type:
- Stud Type Upper Mount
- T-Bar Type Lower Mount
*Notes: Some front applications may require the lower a-arm to be dropped for installation. Body diameter may be too large to allow mounting from the bottom. Some control arm's shock openings may need to be enlarged to accept a QA1 shock.
Stud mounts are measured to the shoulder of the stud. Add 13/16' for installed compressed length per stud mount. Loops and t-bars are measured to the center of the loop. Lengths may vary slightly.
Part TypeShock Absorber and Coil Spring Assembly
BrandQA1
Package Height8.4
Package Width10.4
Package Length21.1
Weight23.39 PG
Part CategoryPerformance Parts
Adjustable ValvingYes
Hardware IncludedYes
Number Of Valving Selections324
Gas ChargedNo
Crossmember IncludedNo
Bushing ColorBlack
Suspension Height Adjustment (In.)0.0-2.0 lowered front
Lower MountBar pin
Shock Body FinishClear anodized
Shock Body MaterialAluminum
Extended Length17 in (431.8 mm)
Coil-Over Springs IncludedYes
Spring Rate450 lbs./in.
Bushing MaterialPolyurethane
Adjustable Mounting Bracket IncludedNo
Spring FinishSilver powdercoated
Recommended Front-End Weight (Lbs.)1,901-2,100
Welding RequiredNo
QuantitySold as a kit
Coil-Over Kit PositionFront
Upper MountStud
Shocks IncludedYes
Threaded Adjustment Range3 in (76.2 mm)
Part FitmentDirect Fit
Collapsed Length11.63 in (295.402 mm)
Internal DesignTwin-tube
Vendor Part NumberGD501-10450C
Package Qty1
Package TypeEA
No Questions
No Reviews
Items You Need
QA1
Thrust Bearing Kit Kit includes: (2) thrust bearings (4) washers to simplify adjustments Notes: Use with all coil-over shocks.
Part Number : 122-7888-109
$4095
QA1
Spanner Wrench & Thrust Bearing Kit 2 each: spanner wrenches, thrust bearings & washers
Part Number : 122-7888-110
$6895
QA1
Spanner Wrenches 26, 26A, 26V, 28, 28A, 28V, 50, 51, 60 and 62 Series Shocks
Part Number : 122-T114W
$2795
QA1
Part Number : 122-7888-109
$4095
QA1
Part Number : 122-7888-110
$6895
QA1
Part Number : 122-T114W
$2795
Some parts are not legal for use in California or other states with similar laws / regulations
