Vehicle Info NeededQA1PART NUMBER: 122-GD502-15300

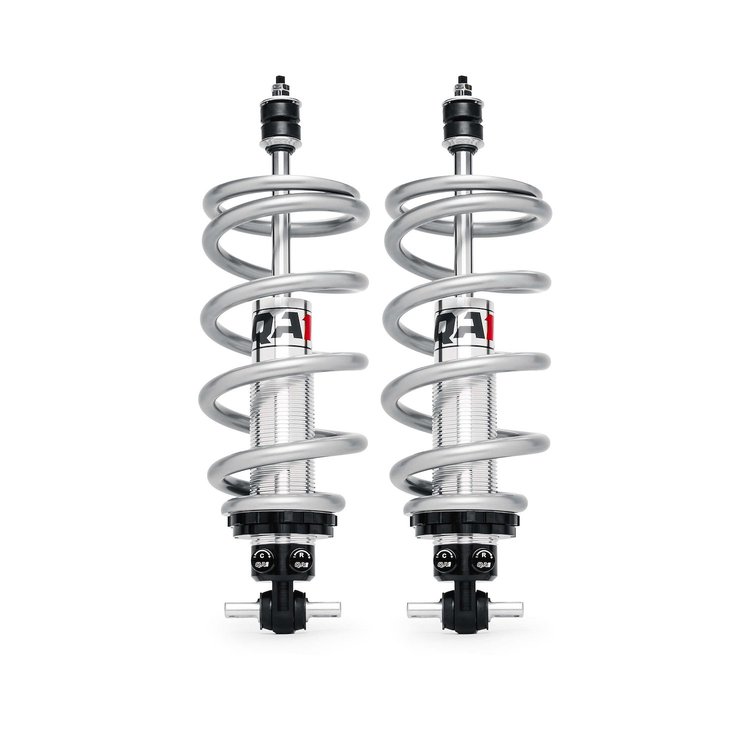

Pro Coil Double Adjustable Conversion System 1993-2002 Camaro/Firebird
$96495
Ships on 09/15/2026
Lowest Price GuaranteePro Coil Double Adjustable Systems1993-2002 F-Body
- Pro Coil Double Adjustable Conversion System
- 1993-2002 Camaro/Firebird
- Class Recommendation: Autocross
- Spring Rate: 300
Includes: - (2) Pro Coil Double Adjustable Coil-Over Shocks
- (2) Pro Coil Springs
- Mounting Brackets & Hardware
Aluminum GEN-F Front Struts for Camaro/Firebird have a single knob to adjust externally for unmatched suspension control with fast, easy ride height changes (12 settings). On coil-over setups, use with GEN-F Springs. Built with factory and modified small blocks in mind, GEN-F Front Springs for 1993-2002 Camaro/Firebird were designed to be used with GEN-F Shocks. In three spring rates, they fit the factory location at the top and, when combined with GEN-F Shocks, offer superior performance.
Part TypeShock Absorber and Coil Spring Assembly
Product LineQA1 1982-2002 F-Body Front Strut Pro Coil Systems
BrandQA1
Package Height10.4
Package Width13.0
Package Length20.3
Weight32.89 PG
Part CategoryPerformance Parts
Adjustable ValvingYes
Hardware IncludedYes
Number Of Valving Selections324
Gas ChargedNo
Crossmember IncludedNo
Bushing ColorBlack
Suspension Height Adjustment (In.)0.0-2.0 lowered front
Lower MountTie bar
Shock Body FinishClear anodized
Shock Body MaterialAluminum
Body Diameter2 in (50.8 mm)
Extended Length12.8 in (325.12 mm)
Coil-Over Springs IncludedYes
Spring Rate300 lbs./in.
Bushing MaterialPolyurethane
Adjustable Mounting Bracket IncludedNo
Spring FinishSilver powdercoated
Welding RequiredNo
QuantitySold as a kit
Coil-Over Kit PositionFront
Upper MountStud
Shocks IncludedYes
Threaded Adjustment Range4.5 in (114.3 mm)
Part FitmentDirect Fit
Collapsed Length9 in (228.6 mm)
Internal DesignTwin-tube
Vendor Part NumberGD502-15300
Package Qty1
Package TypeEA
