Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

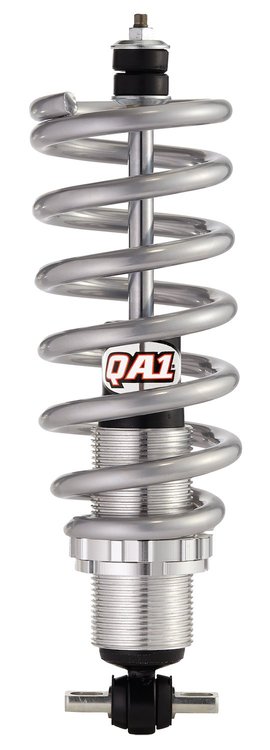

Non-Adjustable Coil-Over Shock KitFront Vehicle Weight: 1801lbs-1900lbs Spring Rate: 400lbs Compressed Height: 8.63" Extended Height: 12.88" Upper Mount: Stud Lower Mount: T-Bar
Fits:
- 1967-1969 GM F-Body Vehicles
- 1968-1974 GM X-Body Vehicles
Kit Includes:
- 2 Shocks
- 2 High Travel Springs
- All Mounting Hardware
- Easy Bolt-In Installation
- (2) Economy Stocker Star GME1 shocks
- (2) specially designed conical springs (12) spring rates / styles are available, based on front end weight and application
- All mounting hardware
Spring Style ''A''
Pigtail End
3.50'' Upper ID
2.50'' Lower ID
Spring Style ''B''
Flat End
3.50'' Upper ID
2.50'' Lower ID
Spring Style ''C''
Flat End
4.10'' Upper ID
2.50'' Lower ID
Minimal modifications to be made. Remove the existing shocksand springs and the QA1 Economy Pro Coil System boltsright back in.
Specially Designed Conical Springs
This spring is designed so that the lower end sets on the coil-overshock and the upper end sets in the original spring bucket in theframe. This allows for the use of a longer and lighter spring formore stored energy, offering increased weight transfer. Greaterdurability and safety is also achieved by locating the springpressure in the frame and not on a single stud.
Ride Height Adjustable
Aluminum sleeve allows ride height adjustment. Allows up to 3"lowering of car.
The QA1 Economy Pro Coil System uses the Economy Stocker Star®shocks as the foundation. The Economy Pro Coil System includes:
)
)
)
Part TypeShock Absorber and Coil Spring Assembly
Product LineQA1 Economy Pro Coil Systems
BrandQA1
Package Height10.5
Package Width11.0
Package Length22.0
Weight22.23 PG
Part CategoryPerformance Parts
Adjustable ValvingNo
Hardware IncludedYes
Coil-Over Springs IncludedYes
Gas ChargedNo
Crossmember IncludedNo
Bushing ColorBlack
Spring Rate400 lbs./in.
Bushing MaterialPolyurethane
Adjustable Mounting Bracket IncludedNo
Suspension Height Adjustment (In.)0.0-2.0 lowered front
Spring FinishSilver powdercoated
Welding RequiredNo
QuantitySold as a pair
Lower MountBar pin
Shock Body FinishSilver powdercoated
Coil-Over Kit PositionFront
Upper MountStud
Shock Body MaterialSteel
Shocks IncludedYes
Extended Length14 in (355.6 mm)
Threaded Adjustment Range3 in (76.2 mm)
Collapsed Length10.13 in (257.302 mm)
Internal DesignTwin-tube
Vendor Part NumberGE401-10400A
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
