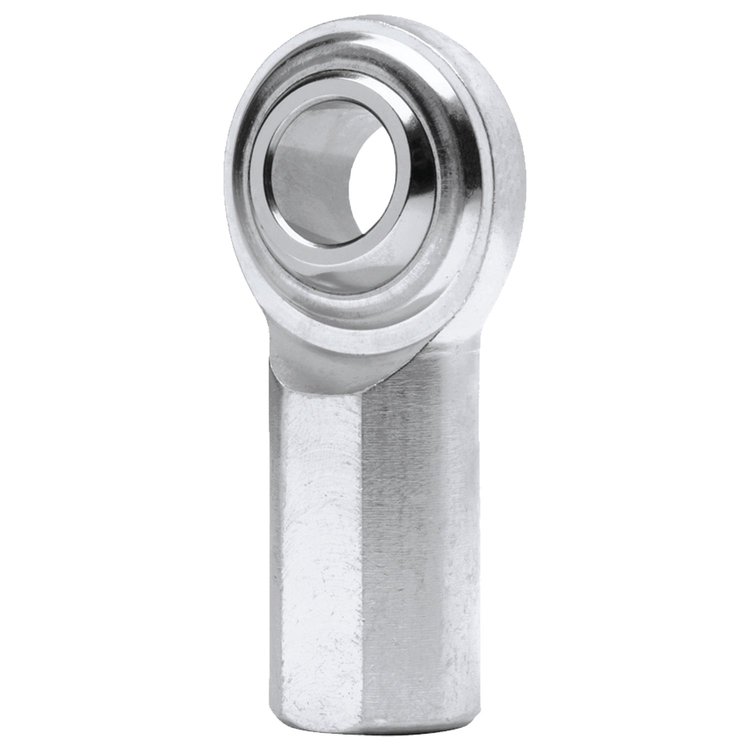

GF-T Series Rod End Hole I.D.: .1900"

Name: GF-T Series Rod End Hole I.D.: .1900"
Brand: QA1
SKU: 122-GFL3T
Price: 16.49 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GF-T Series Rod Ends

Left Hand Thread

Part TypeRod End

BrandQA1

Package Height0.31

Package Width0.62

Package Length1.37

Weight0.04 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishNatural

Rod End Thread Size10-32 LH NF

Thread Length0.5 in (12.7 mm)

Rod End Head Bore Size0.19 in (4.8 mm)

QuantitySold individually

Rod End Centerline Length1.062 in (27 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)20 degrees

Rod End Head Diameter0.625 in (15.9 mm)

Rod End Ball Width0.312 in (7.9 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.312 in (7.9 mm)

Rod End Static Load Capacity (Lbs.)1,190

Rod End MaterialStainless steel

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberGFL3T

Package Qty1

Package TypeEA
