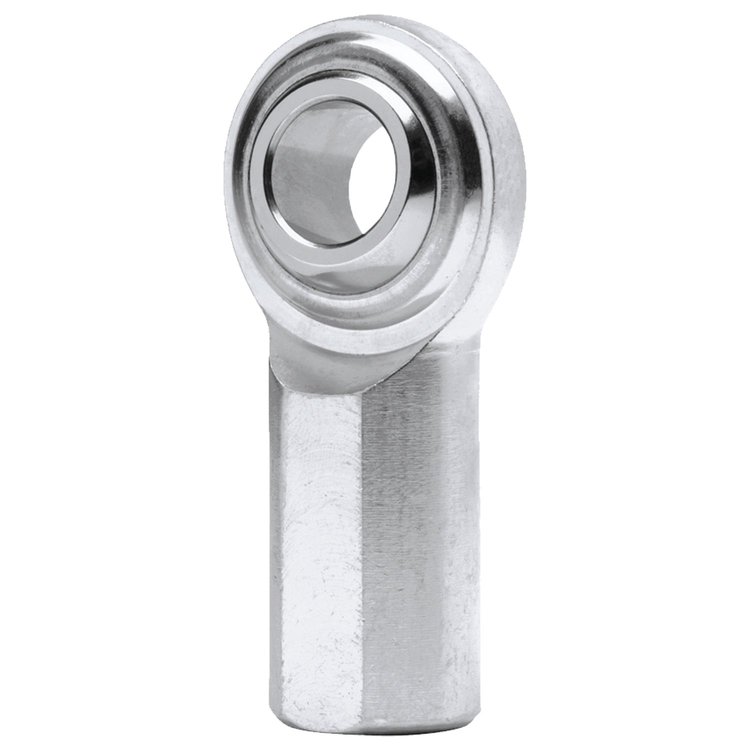

GF-T Series Rod EndsLeft Hand Thread
- GF-T Series Rod End
- Hole I.D.: 3/8''
- Thread: 3/8"-24 LH
- Misalign Angle: 22°
- Static Load: 4,527 lbs.
GF-T Female Series Rod Ends
QA1 offers these stainless steel rod ends for applications that may require a little more traditional look to go with the strength. The GF-T Series are self-lubricating rod ends that are not only corrosion resistant but can be polished.
Show More
Ball
- 440C Stainless Steel
- Heat Treated
- Precision Ground
Body
- Stainless Steel
- PTFE® Lined ("T")
QA1 GF-T Series Stainless Steel Rod Ends are also available with Male Threads
Part TypeRod End
Product LineQA1 GF-T Series Rod Ends
BrandQA1
Package Height2.7
Package Width3.4
Package Length5.6
Weight0.1 PG
Part CategoryPerformance Parts
Rod End AttachmentFemale Threads
Rod End FinishNatural
Thread Length0.812 in (20.6 mm)
Rod End Head Bore Size0.375 in (9.5 mm)
Rod End Thread Size (In.)3/8-24 LH
QuantitySold individually
Rod End Centerline Length1.625 in (41.3 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)22 degrees
Rod End Head Diameter1 in (25.4 mm)
Rod End Ball Width0.5 in (12.7 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.5 in (12.7 mm)
Rod End Static Load Capacity (Lbs.)4,527
Rod End MaterialStainless steel
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberGFL6T
Package Qty1
Package TypeEA
