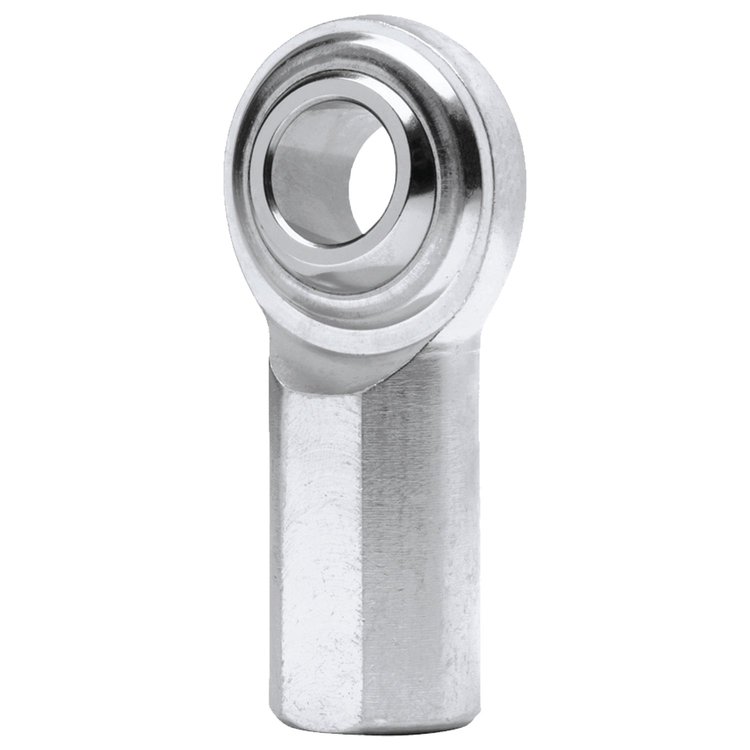

GF-T Series Rod End Hole I.D.: 1/2"

Name: GF-T Series Rod End Hole I.D.: 1/2"
Brand: QA1
SKU: 122-GFL8T
Price: 28.36 USD
Availability: OutOfStock

Currently Unavailable

This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

GF-T Series Rod Ends

Left Hand Thread

Part TypeRod End

BrandQA1

Package Height1.6

Package Width5.0

Package Length6.3

Weight0.34 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishNatural

Thread Length1.062 in (27 mm)

Rod End Head Bore Size0.5 in (12.7 mm)

Rod End Thread Size (In.)1/2-20 LH

QuantitySold individually

Rod End Centerline Length2.125 in (54 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)20 degrees

Rod End Head Diameter1.312 in (33.3 mm)

Rod End Ball Width0.625 in (15.9 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.625 in (15.9 mm)

Rod End Static Load Capacity (Lbs.)7,352

Rod End MaterialStainless steel

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberGFL8T

Package Qty1

Package TypeEA
