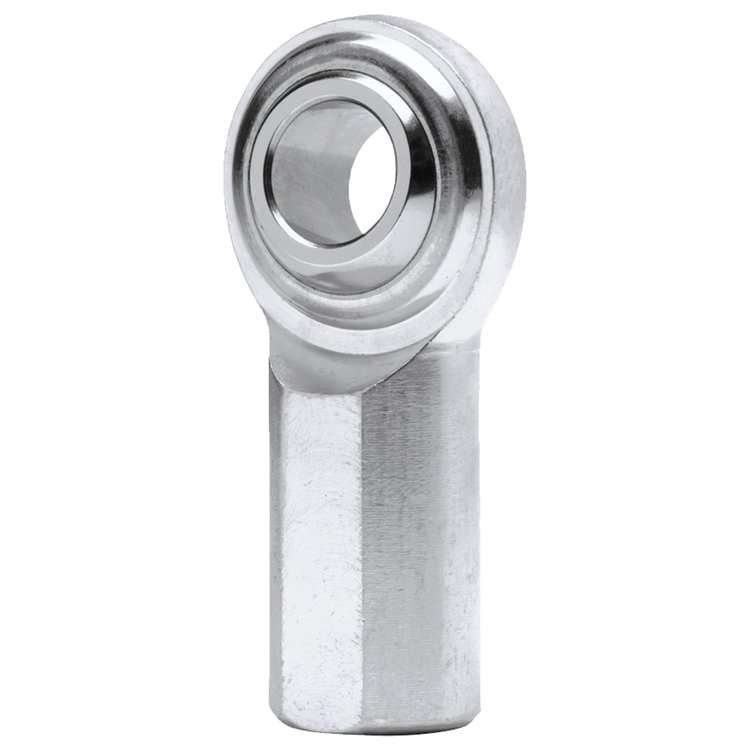

GF-T Series Rod End Hole I.D.: 5/8"

Name: GF-T Series Rod End Hole I.D.: 5/8"
Brand: QA1
SKU: 122-GFR10T
Price: 34.99 USD
Availability: InStock

^$34⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

GF-T Series Rod Ends

Part TypeRod End

BrandQA1

Package Height0.75

Package Width1.5

Package Length3.25

Weight0.43 PG

Part CategoryPerformance Parts

Rod End AttachmentFemale Threads

Rod End FinishNatural

Thread Length1.375 in (34.9 mm)

Rod End Head Bore Size0.625 in (15.9 mm)

Rod End Thread Size (In.)5/8-18 RH

QuantitySold individually

Rod End Centerline Length2.5 in (63.5 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)26 degrees

Rod End Head Diameter1.5 in (38.1 mm)

Rod End Ball Width0.75 in (19.1 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.75 in (19.1 mm)

Rod End Static Load Capacity (Lbs.)8,200

Rod End MaterialStainless steel

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberGFR10T

Package Qty1

Package TypeEA
