Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

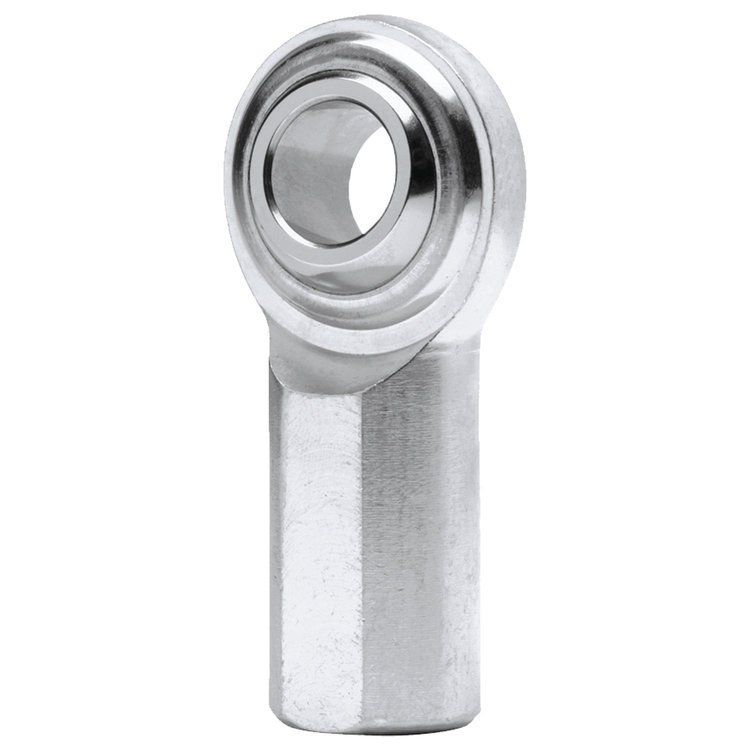

GF-T Series Rod Ends
- GF-T Series Rod End
- Hole I.D.: 3/4''
- Thread: 3/4"-16 RH
- Misalign Angle: 24°
- Static Load: 11,595 lbs.
GF-T Female Series Rod Ends
QA1 offers these stainless steel rod ends for applications that may require a little more traditional look to go with the strength. The GF-T Series are self-lubricating rod ends that are not only corrosion resistant but can be polished.
Show More
Ball
- 440C Stainless Steel
- Heat Treated
- Precision Ground
Body
- Stainless Steel
- PTFE® Lined ("T")
QA1 GF-T Series Stainless Steel Rod Ends are also available with Male Threads
Part TypeRod End
Product LineQA1 GF-T Series Rod Ends
BrandQA1
Package Height1.0
Package Width2.0
Package Length4.0
Weight0.63 PG
Part CategoryPerformance Parts
Rod End AttachmentFemale Threads
Rod End FinishNatural
Thread Length1.562 in (39.7 mm)
Rod End Head Bore Size0.75 in (19.1 mm)
Rod End Thread Size (In.)3/4-16 RH
QuantitySold individually
Rod End Centerline Length2.875 in (73 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)24 degrees
Rod End Head Diameter1.75 in (44.5 mm)
Rod End Ball Width0.875 in (22.2 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.875 in (22.2 mm)
Rod End Static Load Capacity (Lbs.)11,595
Rod End MaterialStainless steel
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberGFR12T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
