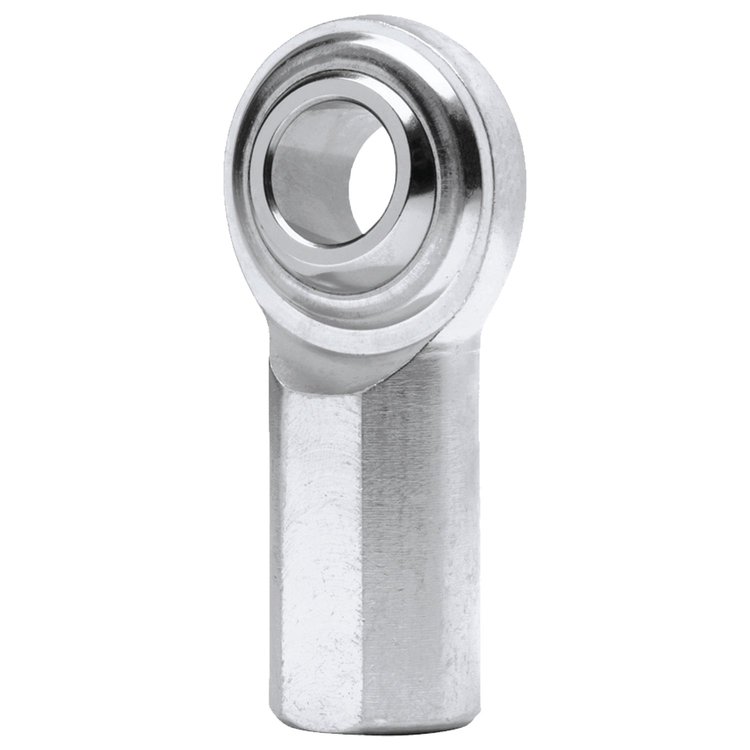

GF-T Series Rod End Hole I.D.: 1/2"
InfoVehicle Info Needed
QA1PART NUMBER: 122-GFR8T

GF-T Series Rod End Hole I.D.: 1/2"

$2836
1 left in stock
ShippingShips Today
Lowest PriceLowest Price Guarantee

GF-T Series Rod Ends
    GF-T Series Rod End
  • Hole I.D.: 1/2''
  • Thread: 1/2"-20 RH

  • Misalign Angle: 20°
  • Static Load: 7,352 lbs.

GF-T Female Series Rod Ends

QA1 offers these stainless steel rod ends for applications that may require a little more traditional look to go with the strength. The GF-T Series are self-lubricating rod ends that are not only corrosion resistant but can be polished.

Show More

Ball

    • 440C Stainless Steel
    • Heat Treated
    • Precision Ground

Body

    • Stainless Steel
    • PTFE® Lined ("T")

QA1 GF-T Series Stainless Steel Rod Ends are also available with Male Threads

Part TypeRod End
Product LineQA1 GF-T Series Rod Ends
BrandQA1
Package Height1.5
Package Width1.5
Package Length3.0
Weight0.3 PG
Part CategoryPerformance Parts
Rod End AttachmentFemale Threads
Rod End FinishNatural
Thread Length1.062 in (27 mm)
Rod End Head Bore Size0.5 in (12.7 mm)
Rod End Thread Size (In.)1/2-20 RH
QuantitySold individually
Rod End Centerline Length2.125 in (54 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)20 degrees
Rod End Head Diameter1.312 in (33.3 mm)
Rod End Ball Width0.625 in (15.9 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.625 in (15.9 mm)
Rod End Static Load Capacity (Lbs.)7,352
Rod End MaterialStainless steel
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberGFR8T
Package Qty1
Package TypeEA
