Product Discontinued
Currently Unavailable
This product is no longer available. Please call customer service for assistance at 1-800-345-4545.

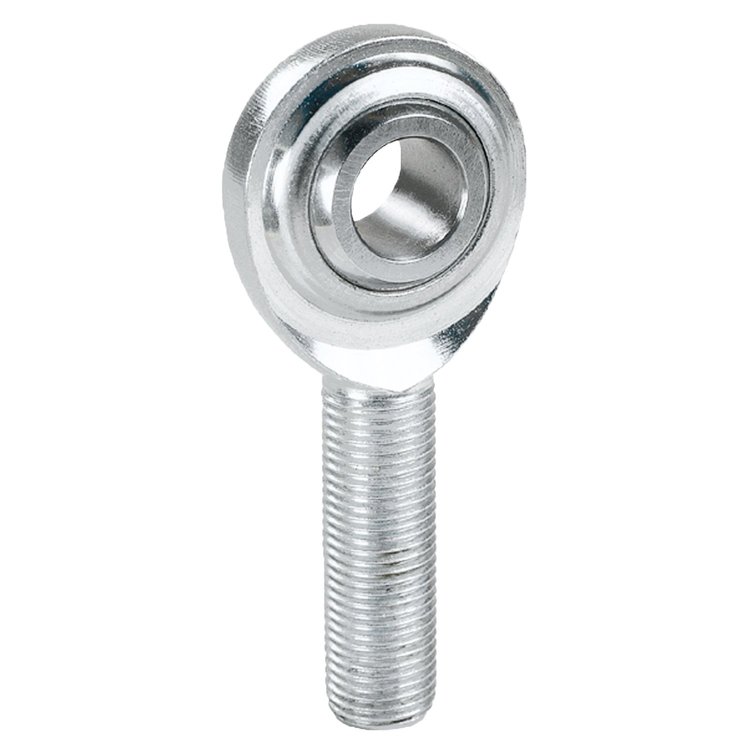

GM-T Series Rod EndsLeft Hand PTFE Lined
- GM-T Series Rod End
- Hole I.D.: 5/8''
- Thread: 5/8''-18 LH
- Misalign Angle: 26°
- Static Load: 8,200 lbs.
GM-T Male Series Rod Ends
QA1 offers these stainless steel rod ends for applications that may require a little more traditional look to go with the strength. The GM-T Series are self-lubricating rod ends that are not only corrosion resistant but can be polished.
Show More
Ball:
- 440C Stainless Steel
- Heat Treated
- Precision Ground
- Hard Chrome Plated
Body:
- Stainless Steel
- 300 Series Stainless Steel
- PTFE® Lined ("T")
QA1 GM-T Series Stainless Steel Rod Ends are also available with FemaleThreads
Part TypeRod End
Product LineQA1 GM-T Series Male Rod Ends
BrandQA1
Package Height0.75
Package Width1.5
Package Length3.37
Weight0.35 PG
Part CategoryPerformance Parts
Rod End AttachmentMale Threads
Rod End FinishNatural
Thread Length1.625 in (41.3 mm)
Rod End Head Bore Size0.625 in (15.9 mm)
Rod End Thread Size (In.)5/8-18 LH
QuantitySold individually
Rod End Centerline Length2.625 in (66.7 mm)
Jam Nut IncludedNo
Rod End Misalign Angle (Deg)26 degrees
Rod End Head Diameter1.5 in (38.1 mm)
Rod End Ball Width0.75 in (19.1 mm)
Grease FittingNo
Rod End Construction2-piece
Heat-TreatedYes
Rod End Head Width0.75 in (19.1 mm)
Rod End Static Load Capacity (Lbs.)8,200
Rod End MaterialStainless steel
Rod End StylePTFE lined
Part FitmentUniversal
Vendor Part NumberGML10T
Package Qty1
Package TypeEA
No Questions
No Reviews
Some parts are not legal for use in California or other states with similar laws / regulations
