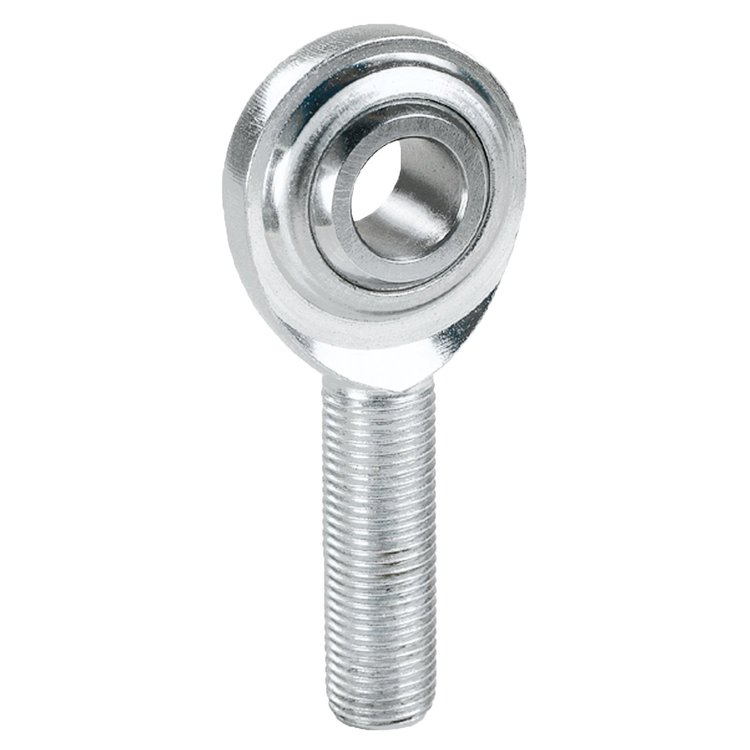

QA1PART NUMBER: 122-GML12T

GM-T Series Rod End Hole I.D.: 3/4"

Name: GM-T Series Rod End Hole I.D.: 3/4"
Brand: QA1
SKU: 122-GML12T
Price: 45.99 USD
Availability: InStock

^$45⁹⁹

Ships on 09/09/2026

Lowest Price Guarantee

GM-T Series Rod Ends
Left Hand

PTFE Lined

Part TypeRod End

BrandQA1

Package Height0.87

Package Width1.75

Package Length3.75

Weight0.55 PG

Part CategoryPerformance Parts

Rod End AttachmentMale Threads

Rod End FinishNatural

Thread Length1.75 in (44.5 mm)

Rod End Head Bore Size0.75 in (19.1 mm)

Rod End Thread Size (In.)3/4-16 LH

QuantitySold individually

Rod End Centerline Length2.875 in (73 mm)

Jam Nut IncludedNo

Rod End Misalign Angle (Deg)24 degrees

Rod End Head Diameter1.75 in (44.5 mm)

Rod End Ball Width0.875 in (22.2 mm)

Grease FittingNo

Rod End Construction2-piece

Heat-TreatedYes

Rod End Head Width0.875 in (22.2 mm)

Rod End Static Load Capacity (Lbs.)11,595

Rod End MaterialStainless steel

Rod End StylePTFE lined

Part FitmentUniversal

Vendor Part NumberGML12T

Package Qty1

Package TypeEA
